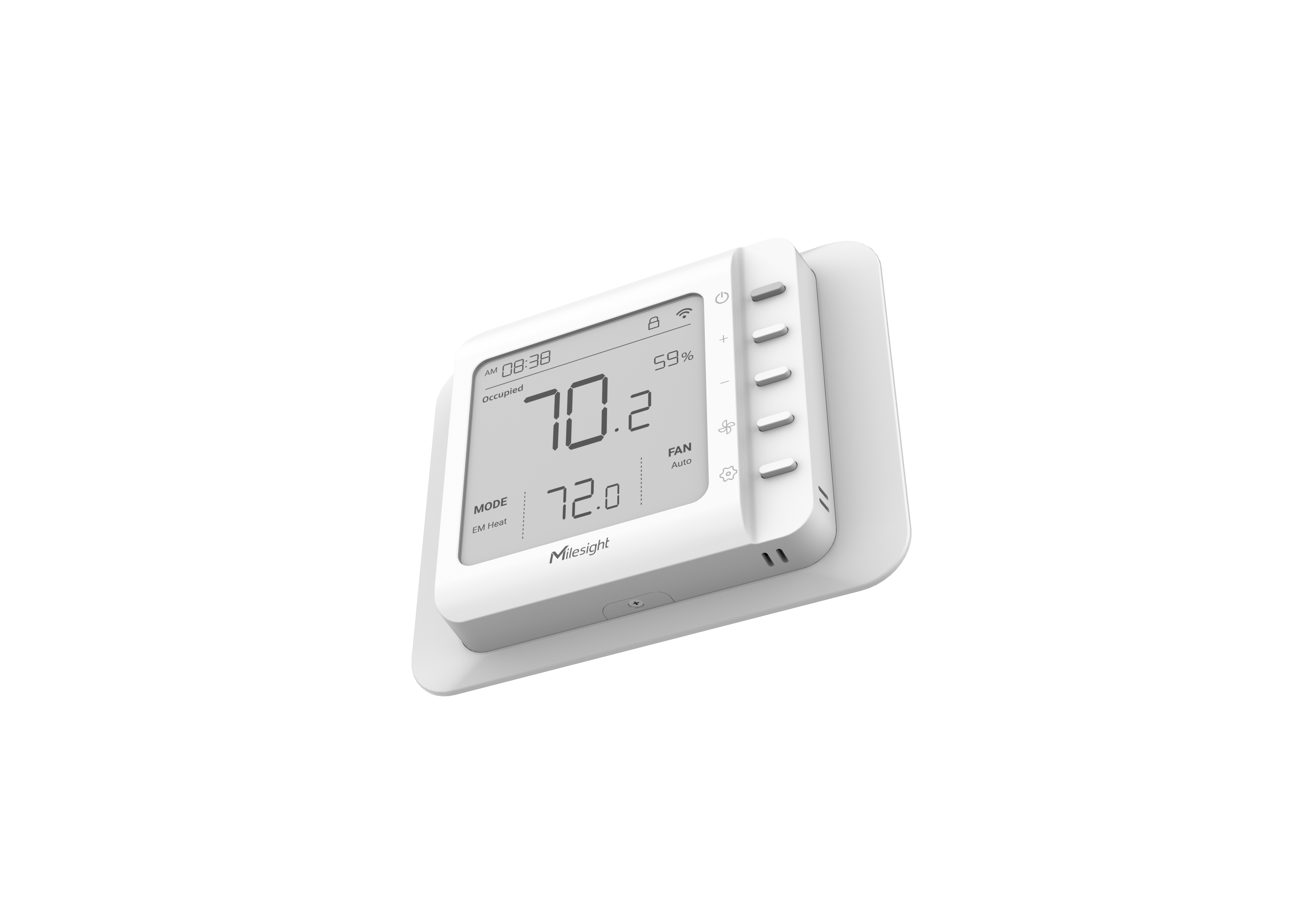

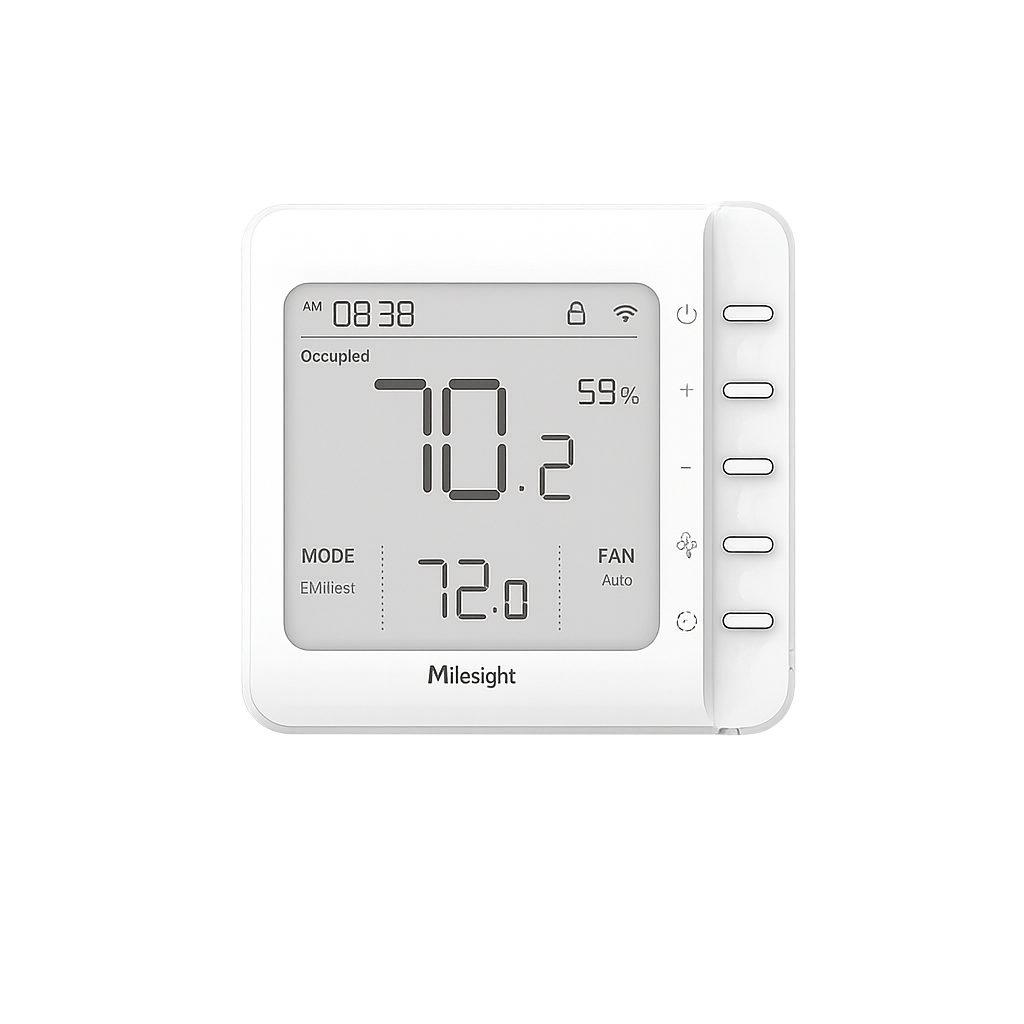

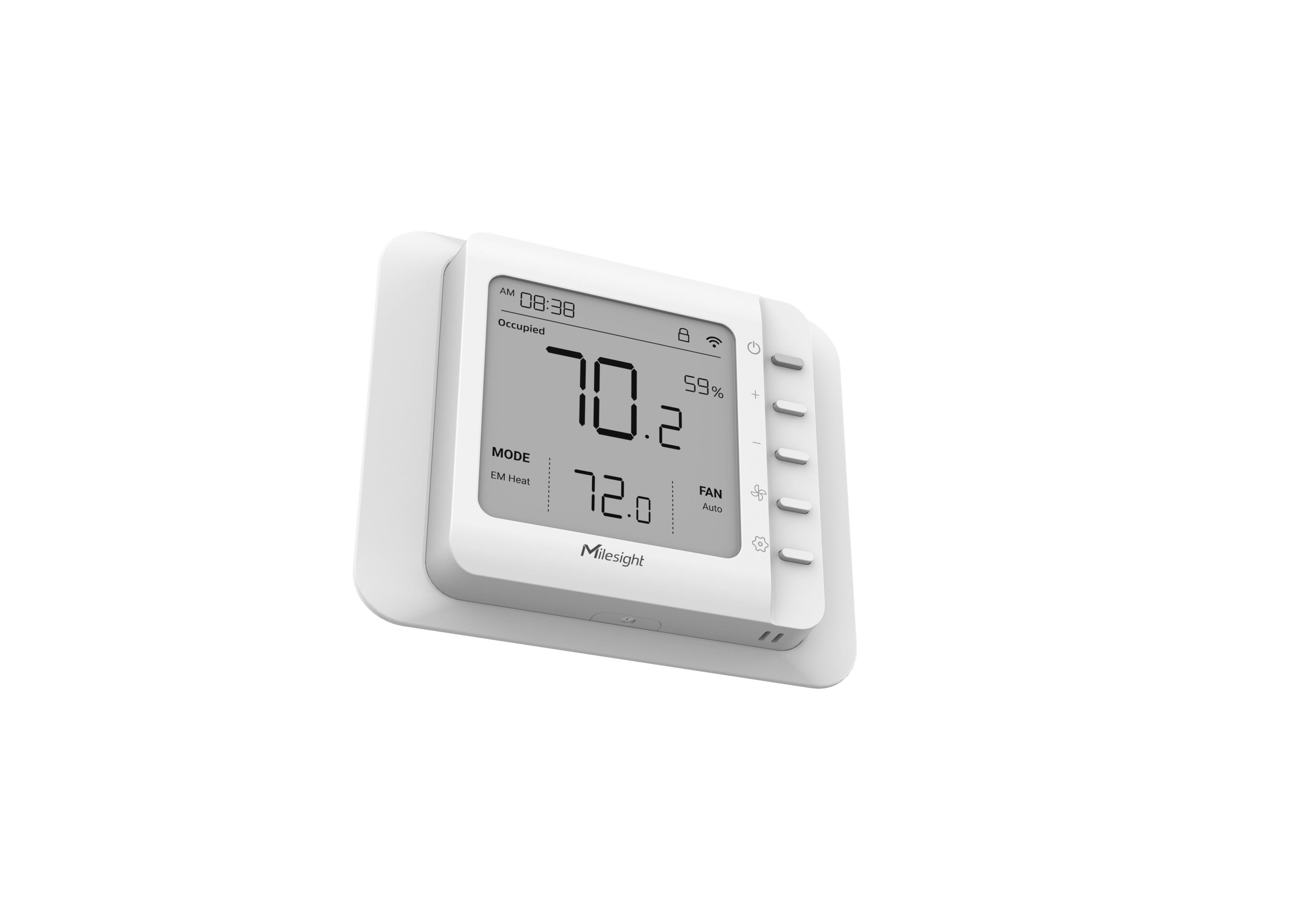

LoRaWAN smart thermostat EU868 US915 Milesight WT201

The Milesight WT201 is a LoRaWAN smart thermostat for 24VAC HVAC systems with temperature and humidity control, local scheduling, and relay-based HVAC management. This version supports EU868 and US915 and fits hotels, offices, homes, hospitals, and commercial spaces where heating, cooling, and fan control need to be integrated into an IoT platform such as Kilo or other compatible systems.

SKU:

incl. VAT141,61 excl. VAT119,00 plusShipping Costs

5 in stock

Related items

lps8 v2 dragino front

Dragino LPS8v2 with 4G LoRaWAN Gateway (EU868)

incl. VAT224,79 excl. VAT188,90 plusShipping Costs

3 in stock

lps8 v2 dragino front tilted

Dragino LPS8N 4G Indoor LoRaWAN Gateway (EU868, SX1302)

incl. VAT211,82 excl. VAT178,00 plusShipping Costs

3 in stock

LoRaWAN Gateway RAK7268CV2 (EU868/LTE Cat4 EG95-E)

Indoor LoRaWAN Gateway 8-Channel with LTE – RAKwireless WisGate Edge Lite 2 RAK7268CV2 (EU868)

SKU: 715118 incl. VAT256,98 excl. VAT215,95 plusShipping Costs

1 in stock

Grand total: incl. VAT0,00 excl. VAT0,00 plusShipping Costs
Product Description Technical Details

The Milesight WT201 is built for wireless HVAC control and monitoring in buildings. Unlike a basic wall thermostat, it does not only manage a room locally but can also be integrated into wider building and IoT workflows over LoRaWAN. That makes it suitable for projects where temperature control, room scheduling, occupancy-related logic, and remote management need to work together.

Typical use cases include hotel rooms, office areas, meeting rooms, residential buildings, clinics, retail spaces, and other indoor environments using 24VAC HVAC systems. It is especially useful where rooms should be controlled individually while still being visible inside a larger management system. In hotels, it can be tied to keycard logic and room usage states. In offices and commercial buildings, it helps align HVAC operation with actual schedules and comfort targets.

The WT201 supports multiple operating modes for heating, cooling, auto mode, and emergency heat, along with several fan modes. It also includes local scheduling so the thermostat can continue to manage the room sensibly even without constant platform interaction. That matters for operators because HVAC control should not stop just because central connectivity is unavailable.

In addition to temperature, the WT201 can work with humidity data and use that information as part of climate control. This is useful in hotels, offices, treatment rooms, and higher-end residential applications where comfort is not only about temperature, but about overall indoor conditions. The unit also adds threshold alarms, freeze protection, relay control, and practical control logic features.

For integrators, the WT201 is most relevant where HVAC control needs to become part of a LoRaWAN deployment without adding more complex wired building automation in every room. Support for EU868 and US915 makes it suitable for professional deployments in Europe and North America where indoor climate, energy efficiency, and central management need to work together.

Model Milesight WT201
Product type LoRaWAN smart thermostat
Versions EU868, US915
Wireless technology LoRaWAN, Milesight D2D
LoRaWAN mode OTAA/ABP Class C
Compatibility Works with most 24VAC HVAC systems including furnaces and air conditioners (2H/2C), heat pumps (4H/2C + 1 stage AUX heat), boilers, and PTAC
Wire terminals RC, RH, C, W1, W2/AUX, E, Y1, Y2/GL, G, O/B, PEK, DI, GND
Wire relays AC 24V, typical 150 mA, max. 1 A
Digital input 1 × dry contact DI for keycard switches, magnet switches, and similar inputs
Temperature control modes Heat, emergency heat, cool, auto
Fan modes Auto, on, circulate
Advanced HVAC features Local control schedule, freeze protection, fan delay, temperature control, dehumidify
Temperature sensor Digital CMOSens MEMS
Temperature range -20 °C to 60 °C
Temperature accuracy ±0.5 °C at 0 °C to 60 °C, ±1 °C at -20 °C to 0 °C
Temperature resolution Report 0.1 °C, display 0.5 °C
Humidity sensor Digital CMOSens MEMS
Humidity range 0% to 100% RH
Humidity accuracy ±3% RH at 40% to 85% RH, ±5% RH at 0% to 40% RH and 85% to 100% RH
Humidity resolution Report 0.5% RH, display 1% RH
Display 4.2-inch LCD segment code screen with white backlight
Buttons 5 buttons for system on/off, temperature up/down, mode switch, fan mode switch, and reset
USB 1 × internal Type-C for console
Configuration NFC via mobile app or downlink
Advanced software features Threshold alarm, child lock, data storage (1000 entries), retransmission, data retrievability, external sensor mode, Milesight D2D controller and agent, multicast, FUOTA
Power supply AC 24V ±15%, typical 150 mA, max. 1 A
Power consumption < 1.2W
Operating temperature -20 °C to 60 °C
Relative humidity 0% to 95% non-condensing
Ingress protection IP30
Material PC + ABS (UL94 V0), white
Weight 172 g
Dimensions 113 × 110 × 21 mm

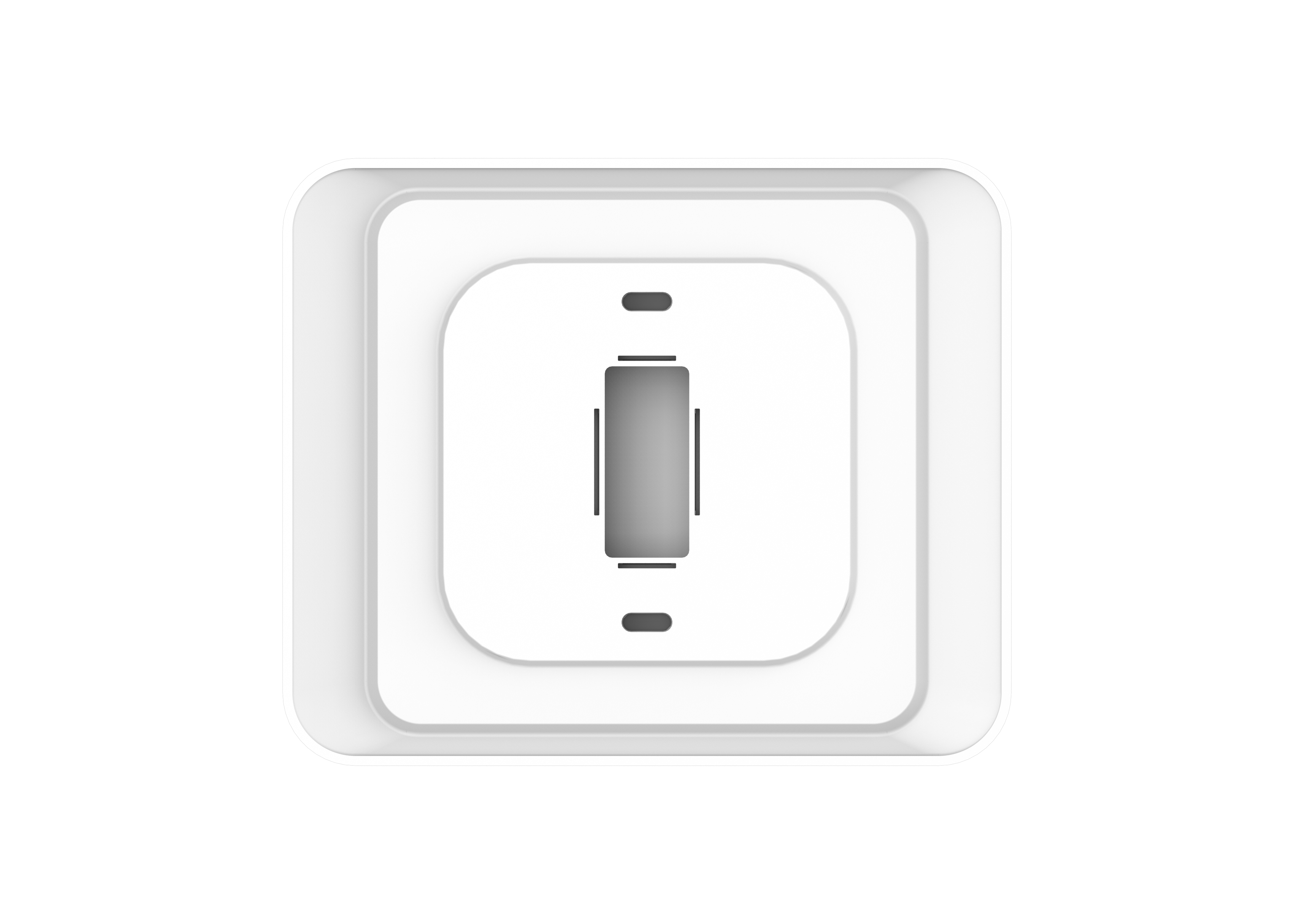

Installation Wall screws mounting
