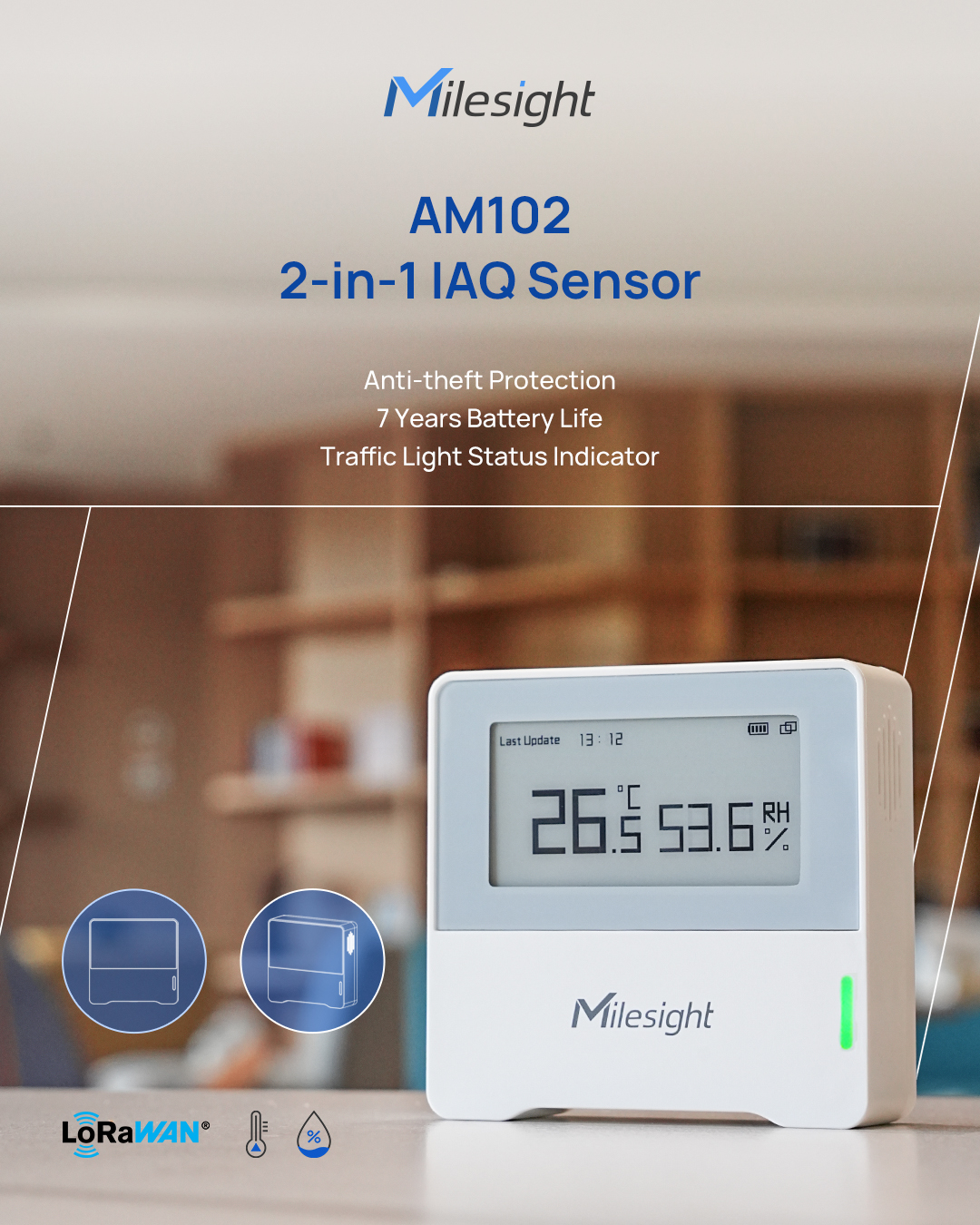

Temperature & Humidity Sensor with E-ink Display LoRaWAN EU868 – Milesight AM102

The Milesight AM102 is a compact 2-in-1 IAQ sensor designed for accurate monitoring of indoor temperature and relative humidity. It combines reliable sensor technology with a built-in 2.13-inch E-ink display for direct on-site data visualization.

The high-contrast black-and-white E-ink screen ensures excellent readability while consuming minimal power. Thanks to bistable display technology, the screen retains information even without continuous power.

Instant Status Visibility with Traffic Light Indicator

An integrated LED traffic light provides visual IAQ feedback:

Green – good conditions

Yellow – elevated values

Red – action required

This makes the sensor ideal for environments where occupants should immediately understand room conditions.

Typical Applications

Offices and meeting rooms

Schools and educational facilities

Hospitals and healthcare environments

Hotels and public buildings

Residential smart home installations

Technical and server rooms

The AM102 supports both professional building monitoring and decentralized smart home deployments.

Energy-Efficient Operation

Powered by two replaceable ER14505 Li-SOCl2 batteries, the AM102 achieves over 7 years of battery life at a 10-minute reporting interval (SF7, EU868).

Additional energy-saving features include:

Smart Screen Mode to reduce display refresh frequency

Hibernate Mode for ultra-low power consumption

Advanced Functions

Threshold alarms

Data storage (1,280 entries)

Data retrieval and retransmission

NFC or downlink configuration

Wall mounting via 3M tape or screws

The AM102 is designed for long-term, maintenance-friendly IoT deployments in indoor air quality monitoring.
