Wi-Fi dome security camera with two-way audio and microSD – HiLook IPC-D140HA-D/W 2.8 mm

4 MP outdoor dome camera with Wi-Fi, 2.8 mm lens, two-way audio, and microSD storage up to 512 GB. Built for entrances, house sides, garages, covered terraces, and smaller outdoor areas where wireless network connection and local recording are preferred.

SKU: 13717

incl. VAT90,39 excl. VAT75,96 plusShipping Costs

3 in stock

Product Description Technical Details

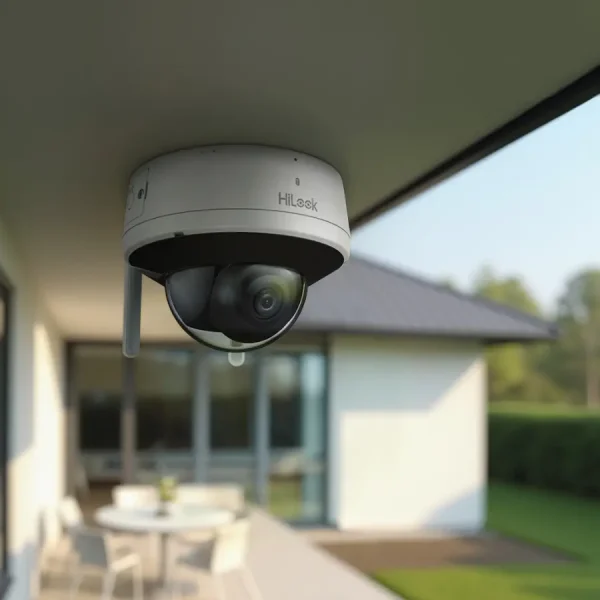

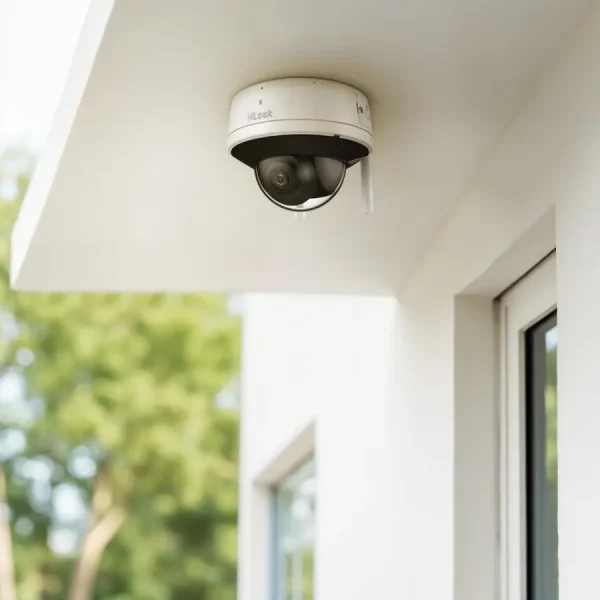

The HiLook IPC-D140HA-D/W in the 2.8 mm version is a 4 MP Wi-Fi dome camera for fixed outdoor mounting points where no network cable is planned for data connection. It is installed at front doors, garages, side entrances, terraces, outbuildings, and under eaves where a compact dome form factor and Wi-Fi setup make more sense than a conventional wired network link.

The 2.8 mm lens is the wide-angle version of this model. It covers the area in front of doors, short access paths, and smaller yard sections well. The 4 MP resolution sits above standard Full HD and is a solid fit for homes, small business units, and secondary access points where people, vehicles, and movement need to be recorded with usable detail.

For low-light scenes, the camera uses EXIR with IR range up to 30 m. That suits driveways, access points, and exterior walls where the scene still needs to remain readable after dark. Digital WDR helps in backlit conditions, for example when the camera faces entry zones or gates with changing light.

The microphone and speaker are already built in. That allows not only video monitoring but also basic two-way communication at entrances, side access points, and garages. Local recording is handled through a microSD card slot with support up to 512 GB. Remote access is available through compatible apps and client software.

The camera supports motion alarms with human and vehicle target types as well as perimeter protection including line crossing, intrusion, region entrance, and region exit. That makes it more useful where alerts need to focus on relevant events instead of every movement in the scene. IP66 protects the housing against dust and rain for normal outdoor use.

Specification Value
Manufacturer HiLook by Hikvision
Model IPC-D140HA-D/W(2.8mm)(W)
Product Type 4 MP Outdoor Fixed Dome Wi-Fi Camera
Image Sensor 1/2.9″ Progressive Scan CMOS
Maximum Resolution 2560 × 1440
Minimum Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Lens Type Fixed focal lens, 2.8 mm
Horizontal FOV 91°
Vertical FOV 49°
Diagonal FOV 108°
Aperture F1.6
Iris Type Fixed
Lens Mount M12
Depth of Field 1.5 m to ∞
DORI D: 63 m, O: 25 m, R: 12 m, I: 6 m
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
Sub-stream 50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288); 60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)
Video Compression Main stream: H.265/H.264; Sub-stream: H.265/H.264
Video Bit Rate Up to 2 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Audio Compression G.711ulaw / G.711alaw / AAC-LC
Audio Bit Rate 64 Kbps (G.711), 16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz / 16 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
Simultaneous Live View Up to 4 channels
API ONVIF, SDK
Security Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for ONVIF
User/Host administrator
Client iVMS-4200, HiLookVision, Hik-Partner-Pro
Wi-Fi Frequency Range 2.412 GHz to 2.472 GHz
Channel Bandwidth 20 MHz
Modulation 802.11b: CCK, QPSK, BPSK; 802.11g: OFDM; 802.11n: OFDM
Wi-Fi Protocol IEEE802.11b, IEEE802.11g, IEEE802.11n
Transfer Rate 11b: up to 54 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps
Wireless Range Up to 120 m
Antenna 2 antennas
Image Settings Saturation, brightness, contrast, sharpness adjustable by client software
Day/Night Switch Auto, schedule, day, night
WDR Digital WDR
SNR ≥ 52 dB
Privacy Mask 4 programmable polygon privacy masks
Built-in Microphone Yes, 1 built-in microphone
Built-in Speaker Yes, 1 built-in speaker
On-board Storage microSD / microSDHC / microSDXC up to 512 GB
Reset Key Yes
Ethernet Interface 1 × RJ45 10 M / 100 M self-adaptive Ethernet port
Events Motion detection with human and vehicle target types, exception
Linkage Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite
Deep Learning Perimeter protection: line crossing, intrusion, region entrance, region exit; human and vehicle target triggering
Power 12 VDC ± 10%, 1 A, max. 10 W, Ø2 mm coaxial power plug, reverse polarity protection
Storage Conditions -30 °C to 60 °C, humidity 95% or less, non-condensing
General Functions Heartbeat, mirror
Operating Conditions -30 °C to 60 °C, humidity 95% or less, non-condensing
Material Base: metal, front cover: polycarbonate, back cover: polycarbonate
Dimensions 120 mm × 120 mm × 95 mm
Package Dimensions 170 mm × 170 mm × 150 mm
Weight Approx. 593 g
Weight with Package Approx. 886 g
Approvals CE-EMC, CE-RED, CB, CE-LVD, CE-RoHS, WEEE
Protection Rating IP66
