CCTV Router for Batch Remote Management UR32S – Milesight (4G LTE, VPN)

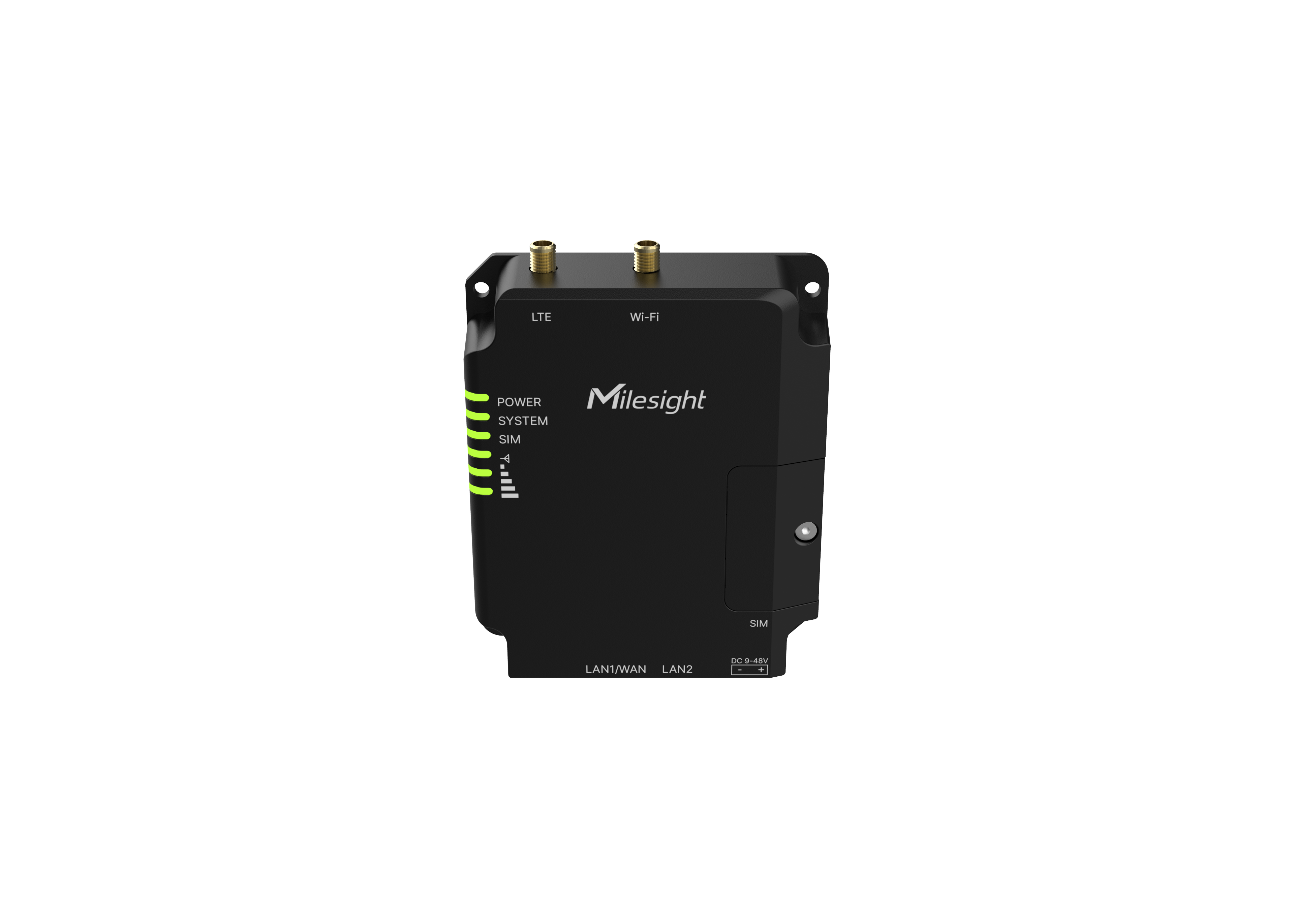

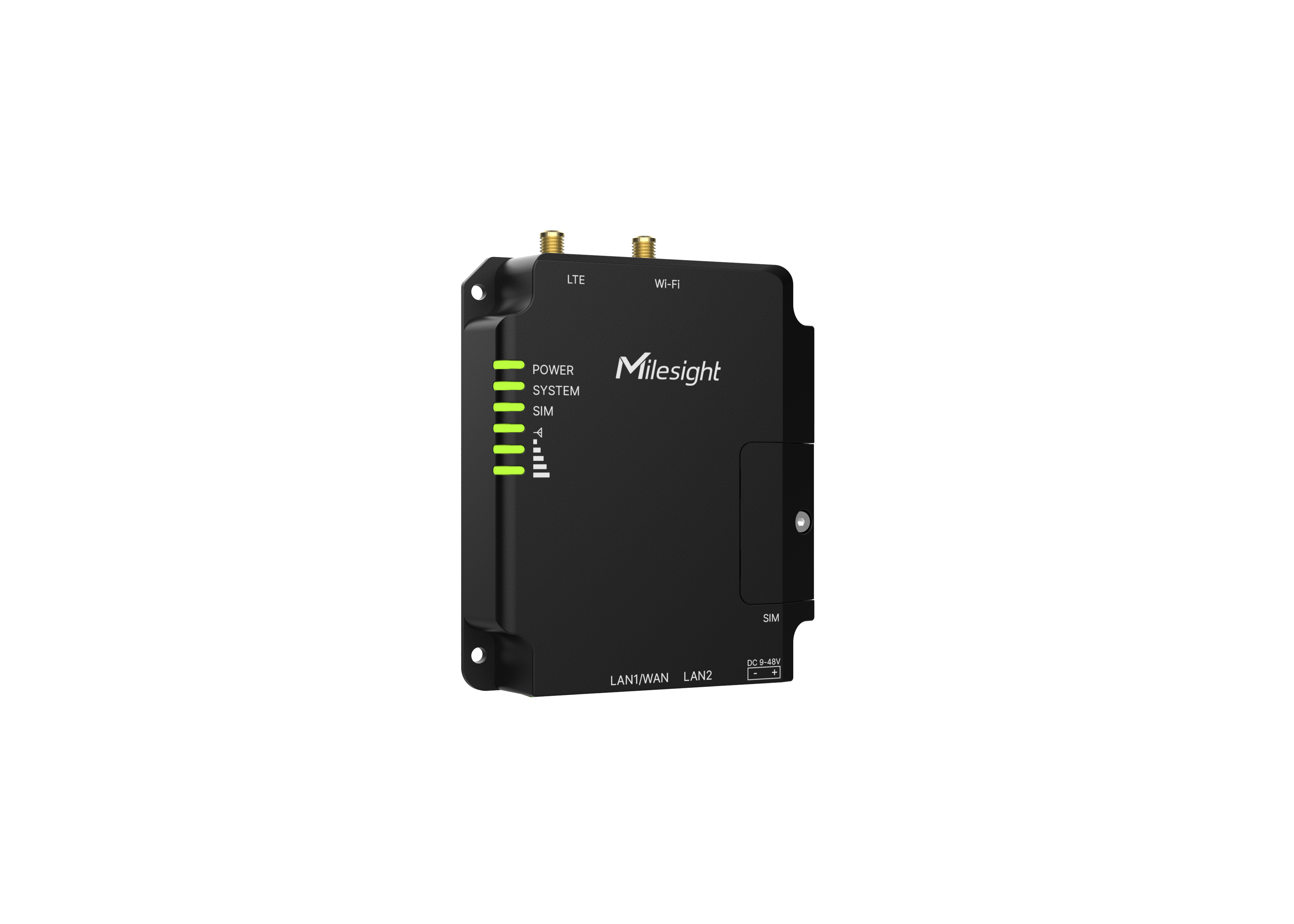

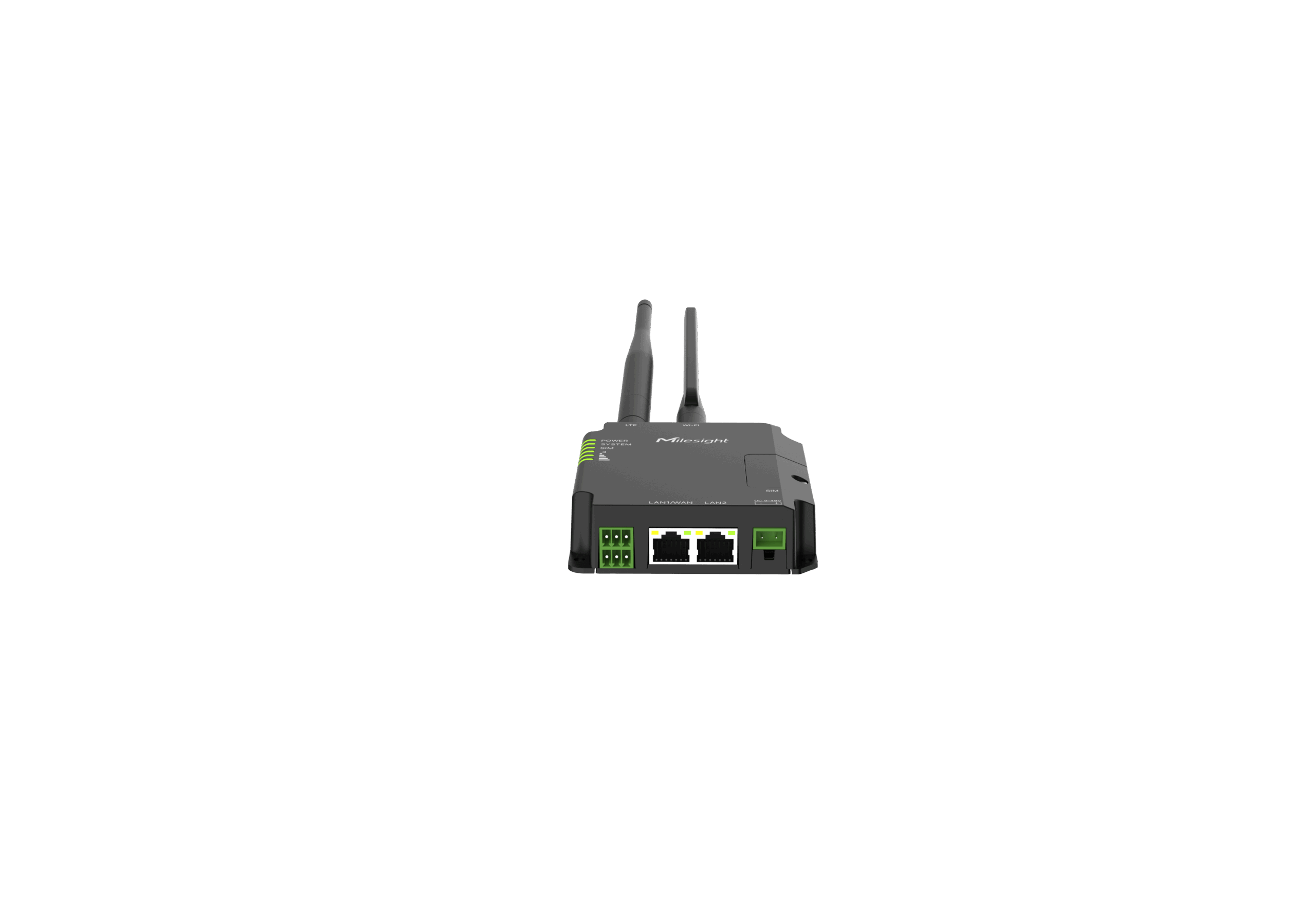

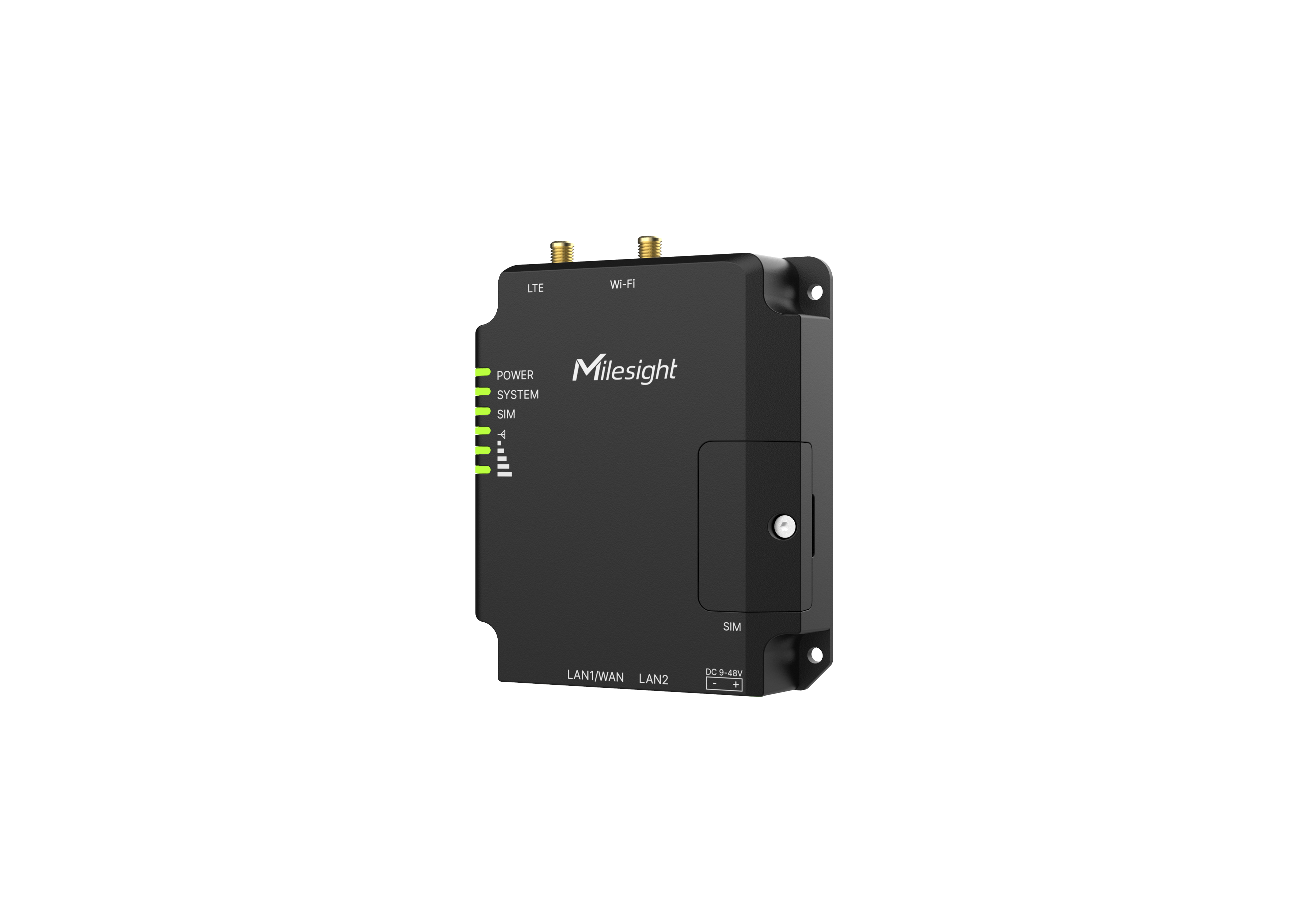

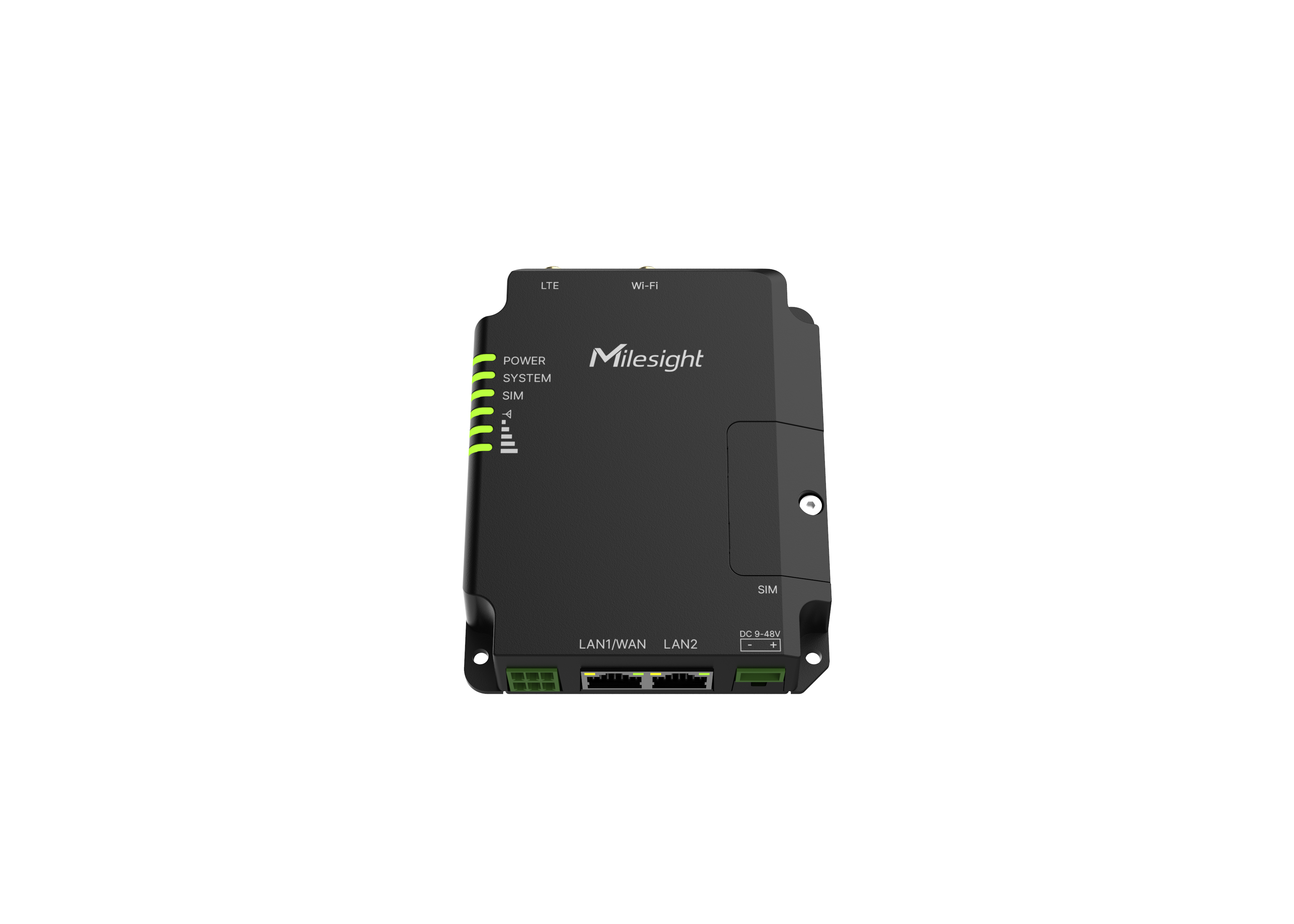

The Milesight UR32S is a compact CCTV router with global 4G LTE, VPN, and Wi-Fi client/AP mode built for managing camera and NVR sites in batch. It creates a stable, secure link between on-site surveillance devices and remote installers or technicians. For worldwide connectivity, pair it with the Kilo Connectivity Global SIM card.
incl. VAT190,40 €excl. VAT160,00 €plusShipping Costs
1 in stock
Product Description
Technical Details
The Milesight UR32S is purpose-built for CCTV deployments where you have many sites to bring online and keep maintainable—without sending technicians back out for every change. It enables a stable, secure connection between on-site cameras/NVRs and remote professionals, so you can handle configuration, access permissions, and troubleshooting more efficiently across a fleet of installations.
On the connectivity side, the UR32S combines 4G LTE and Wi-Fi client/AP mode to fit real deployment constraints. That flexibility helps when a site has limited infrastructure or when you need a consistent commissioning workflow. In global projects, the UR32S is a strong match when paired with the Kilo Connectivity Global SIM card, keeping connectivity standardized across regions.
Security and control are core requirements in video projects. The UR32S supports VPN tunnels (including IPsec and OpenVPN, plus additional tunnel/routing options) and provides firewall features for protected remote access. It also supports SNMP v1/v2c/v3 and a wide set of network tools, making it suitable for professional IT and industrial environments.
The unit uses a rugged metal IP30 enclosure and is designed for -40°C to +70°C operation, allowing reliable performance in cabinets, technical rooms, and constrained spaces where consumer routers fail quickly.
Concrete real-world examples:
Retail chains: standardize connectivity for cameras/NVRs per site and reduce truck rolls with secure remote service access.
Construction sites & temporary surveillance: bring sites online quickly using cellular and manage remotely for security partners.
Industrial yards & logistics: connect perimeter and gate cameras where wired internet isn’t practical, keep access controlled via VPN.
Municipal deployments: remote locations like parking areas or infrastructure sites with secure remote access and centralized operations.
Installers/MSPs: batch setup workflows across many customer sites, with consistent remote management and support.
| Hardware | |
|---|---|
| Name | Milesight CCTV Router UR32S |
| CPU | ARM Cortex-A7, 528 MHz |
| Memory | 128 MB DDR3 RAM and 128 MB Flash |
| Cellular | |
| Antenna Connector | 1 × 50 Ω SMA (Center PIN: SMA Female) |
| SIM Slots | 1 (Mini SIM-2FF) |
| Ethernet | |
| Ports | 2 × 10/100 Mbps |
| Property | 1 × WAN + 1 × LAN (Default) or 2 × LAN |
| Mode | Full or half duplex (Auto-Sensing) |
| PoE | 2 × 802.3 af/at PoE PSE on LAN Ports (Optional) |
| Wi-Fi | |
| Standards | IEEE 802.11 b/g/n, 2.4GHz |
| Modes | AP or Client mode |
| Security | WPA/WPA2 authentication, WEP/TKIP/AES encryption |
| Antenna Connector | 1 × 50 Ω SMA (Center PIN: RP-SMA Female) |
| Tx Power | 802.11b: 16 dBm +/- 1.5 dBm (11 Mbps) 802.11g: 14 dBm +/- 1.5 dBm (54 Mbps) 802.11n: 13 dBm +/- 1.5 dBm (65 Mbps, HT20/40 MCS7) |
| Indicators & Controls | |
| Reset Button | 1 × RESET |
| LED Indicators | 1 × POWER, 1 × SYSTEM, 1 × SIM, 3 × Signal strength |
| Built-in | Watchdog, Timer |
| Software & Management | |
| VPN | DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE |
| Management | Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub |
| AAA | Radius, Tacacs+, LDAP, Local Authentication |
| Reliability | VRRP, WAN Failover |
| Security | Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering (IP&Domain), IP Passthrough |
| Network Protocols | IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, FRP, etc. |
| Power | |
| Power Connector | 2-pin 5.08 mm Terminal Block |
| Input Voltage | 9–48 VDC (surge-protection, reverse polarity protection) |
| Power Consumption | Typical 1.8 W, Max 2.2 W (non-PoE mode) |
| Mechanical & Environmental | |
| Ingress Protection | IP30 |
| Housing | Metal |
| Dimensions | 108 × 90 × 26 mm |
| Installation | Desktop, wall, or DIN rail mounting |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |
| Approvals | |
| Regulatory | CE, FCC, RCM |
| Environmental | RoHS |
| EMC | EN 55032, EN 55035 |
| EMS | IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 2 IEC 61000-4-5 Level 2 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 1 IEC 61000-4-11 Level 3 |
| Radio Frequency | EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413 |
| Safety | EN62368-1 |
