6 MP PoE camera kit with 4 bullet cameras and NVR – HiLook IK28P-460B

Complete surveillance kit for small sites with four 6 MP bullet cameras, an 8-channel PoE NVR, a pre-installed 2 TB hard drive, and four network cables. Built for driveways, building sides, yards, workshops, and small commercial properties where a ready-to-install wired system is preferred.

SKU: IK28P-460B

incl. VAT419,48 excl. VAT352,50 plusShipping Costs

1 in stock

Product Description Technical Details

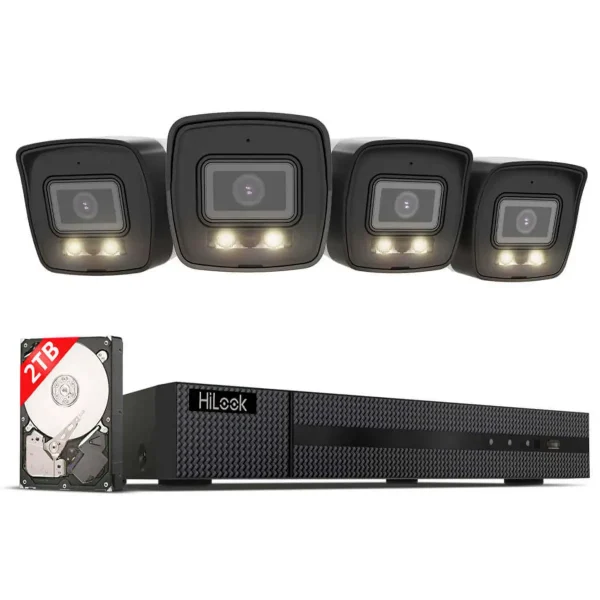

The HiLook IK28P-460B is a complete PoE surveillance kit for smaller sites where cameras, recorder, and power delivery need to work together without extra planning. The set includes four fixed 6 MP bullet network cameras, one 8-channel PoE NVR, a pre-installed 2 TB hard drive, four network cables, and one HDMI cable.

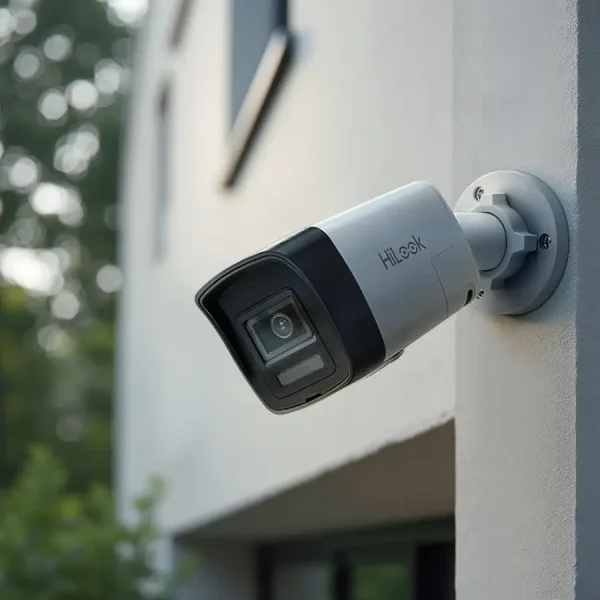

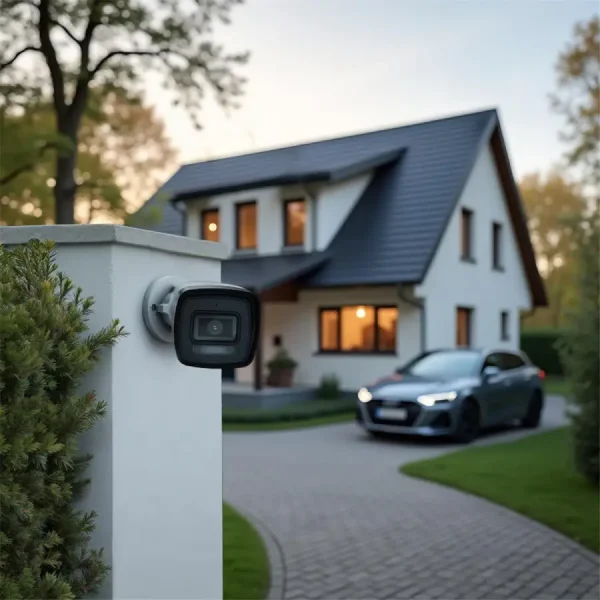

The bullet cameras are intended for fixed viewing positions along driveways, building perimeters, yard areas, workshop access points, detached structures, and approach routes. The 2.8 mm lens covers a broad viewing angle. The 6 MP resolution sits above standard Full HD and fits installations where people, vehicles, and activity around the property need to be recorded with more detail without moving up to an 8 MP kit.

For night monitoring, the cameras use IR and white light. Smart Hybrid Light adjusts illumination to the scene so areas remain easier to read after dark. Motion detection supports person and vehicle filtering, which helps narrow alerts to more relevant events.

The included 8-channel NVR already comes with a 2 TB HDD and supports HDMI output up to 4K. For smaller installations, that removes the need to select storage and recorder separately. The PoE ports power the cameras directly over Ethernet, which keeps installation simpler on façades, garages, workshop walls, and soffit positions.

This set is a practical fit where four fixed camera positions are enough and central recording is required from the start. Typical buyers include electricians, security installers, property managers, small businesses, and homeowners who want a matched system instead of assembling one from separate parts.

Specification Value
Manufacturer HiLook
Model IK28P-460B
Product Type 6 MP PoE Bullet Camera Kit with Smart Hybrid Light
Kit Contents 4 bullet network cameras, 1 × 8-channel PoE NVR, 4 network cables, 1 HDMI cable
Pre-installed Storage 2 TB HDD
NVR Camera Inputs 8 channels
Camera Type Bullet
Camera Image Sensor 1/2.4″ Progressive Scan CMOS
Lens 2.8 mm fixed lens
Aperture F1.6
Focus Fixed
FOV 105° horizontal, 55° vertical, 127° diagonal
Lens Mount M12
Shutter Speed 1/3 s to 1/100,000 s
Day/Night IR cut filter
WDR 120 dB
Angle Adjustment Pan 0° to 360°, tilt 0° to 75°, rotation 0° to 360°
Camera Protection IP67
Camera Material Meta
Wi-Fi No
Camera Power Supply 12 VDC ± 25%, 0.41 A, 5 W max.; PoE IEEE 802.3af Class 3, 6.5 W max.
Camera Operating Temperature -30 °C to 60 °C
Camera Humidity 95% or less, non-condensing
Camera Dimensions 179 × 67.4 × 69.1 mm
Camera Weight Approx. 450 g
Camera Video Compression H.265+; H.265; H.264+; H.264; MJPEG
H.264 Type Main Profile / High Profile / Baseline Profile
H.264+ Main Profile
H.265 Type Main Profile
H.265+ Main Profile
Camera Video Bit Rate 32 Kbps to 16 Mbps
Main Stream 50 Hz: 20 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720; 60 Hz: 20 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720
Sub-stream 50 Hz: 25 fps at 1280 × 720, 640 × 480, 640 × 360; 60 Hz: 30 fps at 1280 × 720, 640 × 480, 640 × 360
Image Settings Mirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance
Day/Night Switch Auto, scheduled, day, night
Events Motion detection with person and vehicle filtering, video tampering alarm, exception
Camera Protocols TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP
Camera General Functions Anti-flicker, heartbeat, password protection, password reset via email
Client HiLook
Camera Ethernet 1 × RJ45 10M/100M Ethernet
On-board Storage N/A
Audio I/O No
Video Out No
Alarm I/O No
Reset Button No
Supplement Light IR and White Light
Supplement Light Range Up to 30 m
NVR Video Inputs 8 channels
NVR Bandwidth 80 Mbps incoming / 80 Mbps outgoing
NVR Video Output HDMI up to 4K, VGA up to 1920 × 1080
NVR Decoding Format H.265+, H.265, H.264+, H.264
NVR Decoding Capability 1-channel@8 MP (30 fps) / 3-channel@4 MP (30 fps) / 6-channel@1080p (30 fps)
NVR Network 1 × RJ45 10/100M Ethernet
NVR Network Protocols TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Remote Connections 32
NVR PoE Ports 8 channels
NVR PoE Power ≤ 75 W
NVR PoE Standard IEEE 802.3 af/at
SATA 1
Max HDD Capacity Up to 8 TB for each disk
USB 2 × USB 2.0 rear panel
Alarm In/Out No
NVR Power Supply 48 VDC
NVR Power Consumption ≤ 10 W without HDD and with PoE off
NVR Operating Temperature -10 °C to 55 °C
NVR Humidity 10% to 90%
NVR Dimensions 265 × 225 × 48 mm
NVR Weight ≤ 1 kg without hard disk
Accessories 4 network cables, 1 HDMI cable
Hard Drive Pre-installed 2 TB HDD
Certification CE
Package Weight ≤ 7.5 kg
Recording Resolution 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback 8 channels
