Relay Module 250VAC 5A/10A Omron G5LE-14 DC3 – RAK13007
The RAK13007 is a WisBlock relay module based on the Omron G5LE-14 DC3, capable of controlling AC voltages up to 250V and currents up to 10A (resistive load). It is ideal for switching devices such as light bulbs, motors, fans, and conveyors.
incl. VAT9,52 €excl. VAT8,00 €plusShipping Costs
10 in stock
Product Description
Technical Details

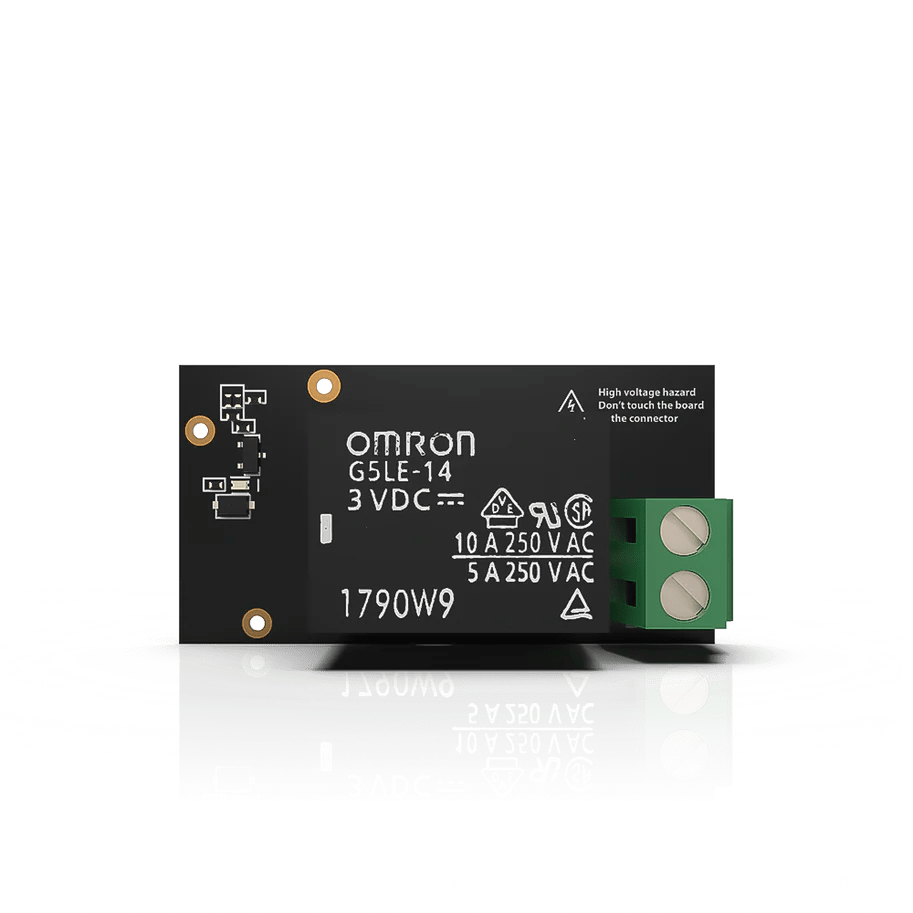

The RAK13007 WisBlock Relay Module extends the WisBlock system with a safe and reliable isolated digital output. It features a single electromechanical isolated relay output that allows you to programmatically switch on or off high-voltage or high-current devices.
With an isolation rating of up to 2,500 VDC (50/60 Hz for 1 minute), the module ensures strong protection and separation between internal control logic and external high-voltage circuits.
The RAK13007 supports both resistive loads (up to 250 VAC / 10 A or 30 VDC / 8 A) and inductive loads (up to 250 VAC / 5 A or 30 VDC / 4 A), making it versatile for a wide range of applications.
Its compact design of 25 × 48 mm makes it well-suited for IoT solutions that require safe and efficient control of high-power equipment.
| Specification | Details |
|---|---|
| Model | RAK13007 Relay Module |
| Relay Type | Omron G5LE-14 DC3 |
| Output | 1 isolated relay output |
| Isolation | Up to 2500 VDC, 50/60 Hz for 1 minute |
| Max Switching Capacity (Resistive Load) | 250 VAC / 10 A, 30 VDC / 8 A |
| Max Switching Capacity (Inductive Load) | 250 VAC / 5 A, 30 VDC / 4 A |
| Typical Applications | Light bulbs, electric motors, fans, conveyors |
| Size | 25 × 48 mm |
