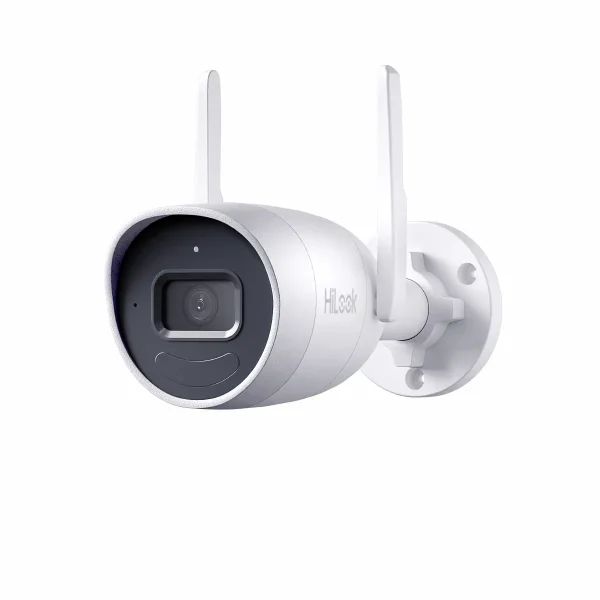

Wi-Fi bullet security camera with two-way audio and microSD – HiLook IPC-B140HA-D 2.8 mm
4 MP Wi-Fi bullet camera with 2.8 mm lens, EXIR night vision up to 30 m, two-way audio, and local microSD storage up to 512 GB. Built for entrances, driveways, house sides, garages, and small outdoor areas where wireless network connection is preferred.
incl. VAT62,00 €excl. VAT52,10 €plusShipping Costs
3 in stock

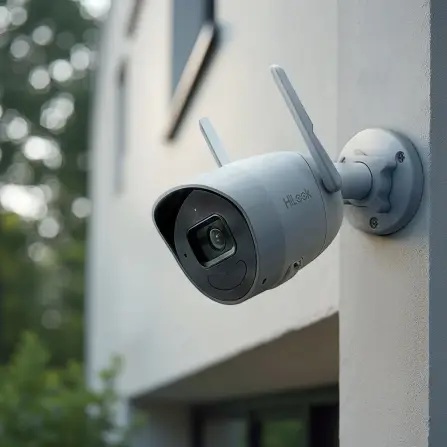

The HiLook IPC-B140HA-D in the 2.8 mm version is a 4 MP Wi-Fi bullet camera for fixed monitoring points where a network cable is not preferred for data connection. It is installed at front doors, garages, side paths, driveways, outbuildings, and under eaves where Wi-Fi setup and local recording inside the camera are more practical than a full wired installation.
The 2.8 mm lens is the wide-angle version of this model. It covers the area in front of doors, short access paths, and smaller yard sections well. The 4 MP resolution delivers more usable detail than basic 1080p cameras and fits residential and small-site installs where activity around the building needs to be recorded clearly.
For low-light scenes, the camera uses EXIR 2.0 with IR illumination up to 30 m. That works well for driveways, side entrances, and garden paths where the scene still needs to stay readable after dark. The IR cut filter handles day and night switching automatically or on schedule.
A key point on this model is two-way audio. The microphone and speaker are built in, which is useful at gates, front doors, side entrances, and garage areas where someone may need to respond directly through the camera. Local recording is handled through a microSD card slot with support up to 512 GB.
The camera supports 2.4 GHz Wi-Fi and also includes an RJ45 port for wired network connection. Remote access is available through the Hik-Connect app. IP66 protects the housing against dust and rain. According to the manufacturer, this model is not intended for sites that require special anti-corrosion protection such as direct coastal or chemically aggressive environments.
| Specification | Value |
|---|---|
| Manufacturer | HiLook by Hikvision |
| Model | IPC-B140HA-D(2.8mm)(B) |
| Product Type | 4 MP EXIR Bullet Wi-Fi Network Camera |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Maximum Resolution | 2560 × 1440 |
| Minimum Illumination | Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR on |
| Shutter Speed | 1/25 s to 1/10000 s |
| Day & Night | IR cut filter |
| Pan/Tilt/Rotation | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Lens Type | 2.8 mm fixed lens |
| Horizontal FOV | 91° |
| Vertical FOV | 49° |
| Diagonal FOV | 108° |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Depth of Field | 1 m to ∞ |
| DORI | T: 63 m, O: 25 m, R: 12 m, I: 6 m |
| Supplement Light | IR |
| IR Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Smart IR | Yes |
| Stream 1 | 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720), 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Stream 2 | 50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288), 60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288) |
| Video Compression | Stream 1: H.265/H.264, Sub-stream: H.265/H.264 |
| Video Bit Rate | 256 Kbps to 2 Mbps |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR / VBR |
| Audio Compression | G.711, AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw), 16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz, 16 kHz |
| Environment Noise Filtering | Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS |
| Simultaneous Live View | Up to 4 channels |
| API | ONVIF, SDK |
| Security | Password protection, HTTPS encryption, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for ONVIF |
| User/Host | One user: Administrator |
| Client Software | iVMS-4200, HiLookVision, Hik-Partner-Pro |
| Wi-Fi Transfer Rate | 11b: up to 54 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps |
| Wi-Fi Protocol | 802.11n OFDM, 802.11b DSSS, 802.11g OFDM |
| Frequency Range | 2.412 GHz to 2.472 GHz |
| Channel Bandwidth | 20 MHz |
| Wireless Range | Up to 120 m |
| Encryption Mode | WPA-PSK/WPA2-PSK |
| Antenna | 2 antennas |
| Image Settings | Saturation, brightness, contrast, and sharpness adjustable by client software |
| Day/Night Switch | Auto, schedule, day, night |
| WDR | Digital WDR |
| Privacy Mask | 4 programmable privacy masks (polygons) |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Storage | microSD/SDHC/SDXC up to 512 GB |
| Reset Button | Yes |
| Ethernet Interface | 1 × RJ45 10M/100M self-adaptive Ethernet port |
| Events | Motion detection with human/vehicle triggering, exception |
| Linkage | Upload to memory card, notify surveillance center, trigger capture, audible warning, auto tracking lite |
| Power Supply | 12 VDC ± 25%, 0.58 A, max. 7 W |
| Power Adapter | Included |
| Language | English |
| Storage Conditions | -30 °C to +60 °C, humidity 95% or less, non-condensing |
| Operating Conditions | -30 °C to +60 °C, humidity 95% or less, non-condensing |
| General Functions | Heartbeat, mirror |
| Material | Front cover: metal, rear cover: plastic |
| Dimensions | 175.6 × 73 × 89.1 mm |
| Package Dimensions | 260 × 125 × 125 mm |
| Weight | Approx. 345 g |
| Weight with Package | Approx. 635 g |
| Certifications | CE-EMC, CE-RED, CE-LVD, CB, CE-RoHS, WEEE |
| Protection Rating | IP66 |
