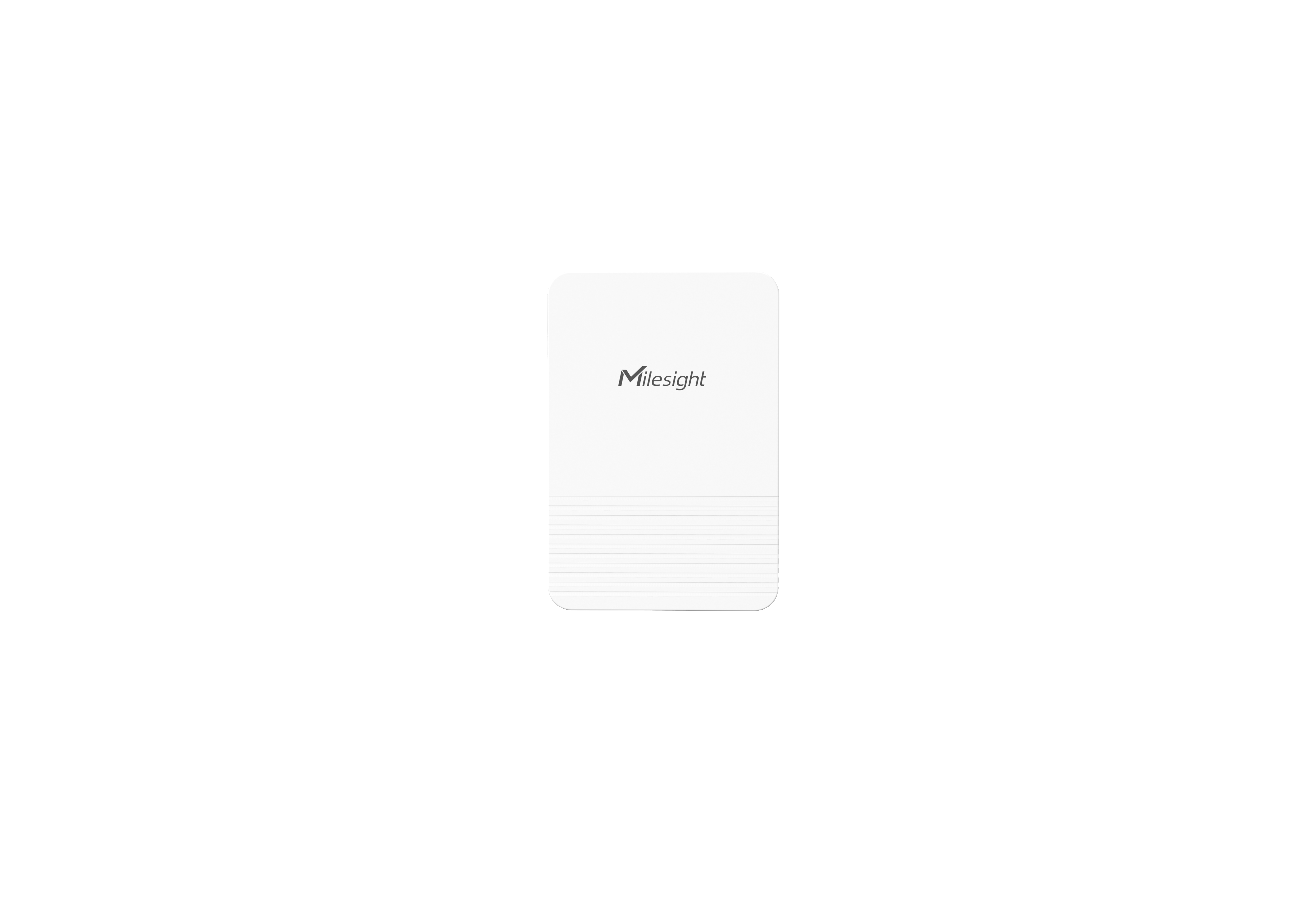

Temperature and Humidity Sensor LoRaWAN – Milesight EM320-TH 868
EN12830-certified LoRaWAN temperature and humidity sensor for fixed installation in cold rooms, food warehouses and pharmaceutical storage.
incl. VAT68,90 €excl. VAT57,90 €plusShipping Costs
3 in stock
Related items
Indoor LoRaWAN Gateway 8-Channel – RAKwireless WisGate Edge Lite 2 RAK7268V2 (EU868, no LTE)
SKU: 715117 incl. VAT165,41 €excl. VAT139,00 €plusShipping Costs4 in stock
Milesight Radiation Shield SS11 with Louvered Housing for EM320
incl. VAT130,90 €excl. VAT110,00 €plusShipping Costs2 in stock
Outdoor LoRaWAN Gateway 8-Channel – RAKwireless WisGate Edge Pro RAK7289V2 (868 MHz) no LTE
SKU: 715121 incl. VAT442,68 €excl. VAT372,00 €plusShipping Costs2 in stock
Grand total: incl. VAT0,00 €excl. VAT0,00 €plusShipping Costs
Product Description
Technical Details
The Milesight EM320-TH 868 (Standard Version) is designed for permanent installation in regulated storage environments.
It measures temperature from -30°C to +60°C and humidity from 0% to 100% RH using a high-precision Sensirion SHT41 sensor.
Built with FDA-approved food-grade materials and certified according to EN12830, it meets regulatory requirements for temperature monitoring and traceability in food and pharmaceutical supply chains.
With storage for 3,000 timestamped records and automatic retransmission, the device ensures complete compliance documentation even during temporary network interruptions.
Typical applications:
Cold rooms
Food warehouses
Pharmaceutical storage
Vaccine facilities
HACCP documentation
Compliance-driven logistics centers
| Wireless Technology | LoRaWAN® |
|---|---|
| Frequency | EU868 |
| Antenna | Internal Antenna |
| Tx Power | 16 dBm (868 MHz) |
| Sensitivity | -137 dBm @300 bps |
| Mode | OTAA / ABP Class A |
| Temperature Range | -30°C to +60°C |
| Temperature Accuracy | ±0.3°C (-30°C~0°C); ±0.2°C (0°C~60°C) |
| Temperature Resolution | 0.1°C |
| Humidity Range | 0% to 100% RH |
| Humidity Accuracy | ±2% RH (typ. at 25°C) |
| Humidity Resolution | 0.5% RH |
| Data Storage | 3,000 records with timestamp |
| Alarm | Threshold alarm |
| Configuration | Mobile App via NFC |
| Power Supply | 2 × 2700 mAh ER14505 Li-SOCl2 batteries |
| Battery Life | Over 10 years (SF7, EU868, 10-min interval) |
| Operating Temperature | -30°C to +60°C |
| Relative Humidity | ≤95% |
| Ingress Protection | IP67 |
| Housing | Food-grade PC + ABS, White |
| Weight | 93.2 g (Standard Version) |
| Dimensions | 85 × 58 × 18 mm |
| Installation | Wall or pole mounting |
| Certifications | CE, FCC, Telec, EN12830 |
| Environmental Compliance | RoHS |
