WisBlock Light and Color Kit – IoT Development Kit /with RAK5860/800 MHz for EU868/IN865/RU864
The WisBlock Light and Color Kit is a complete IoT development kit for light and color measurement. Equipped with UV and ambient light sensors, RGB light sensors, and LED displays, it supports LoRaWAN, NB-IoT, and LTE-M optimized for EU868, IN865, and RU864 (800 MHz).
incl. VAT171,36 €excl. VAT144,00 €plusShipping Costs
1 in stock
Product Description
Technical Details
The WisBlock Light and Color Kit focuses on light sensing and LED output. It’s meant for testing and development with RGB, UV, and ambient light sensors, as well as driving different LED modules.

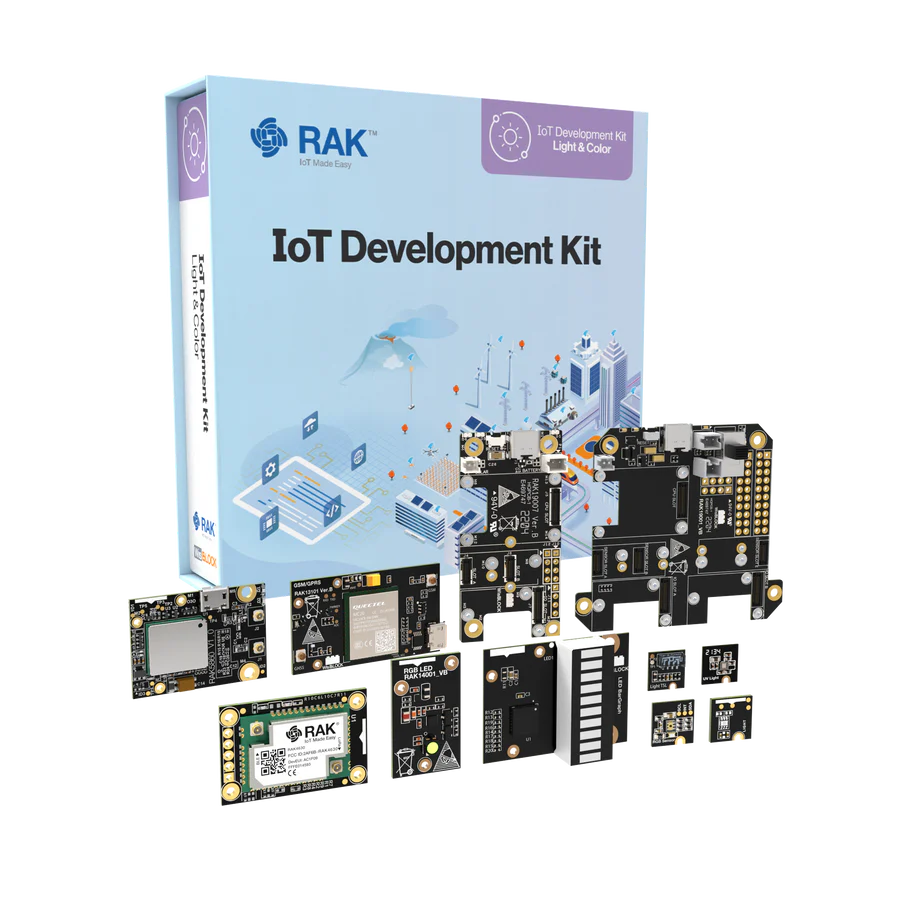

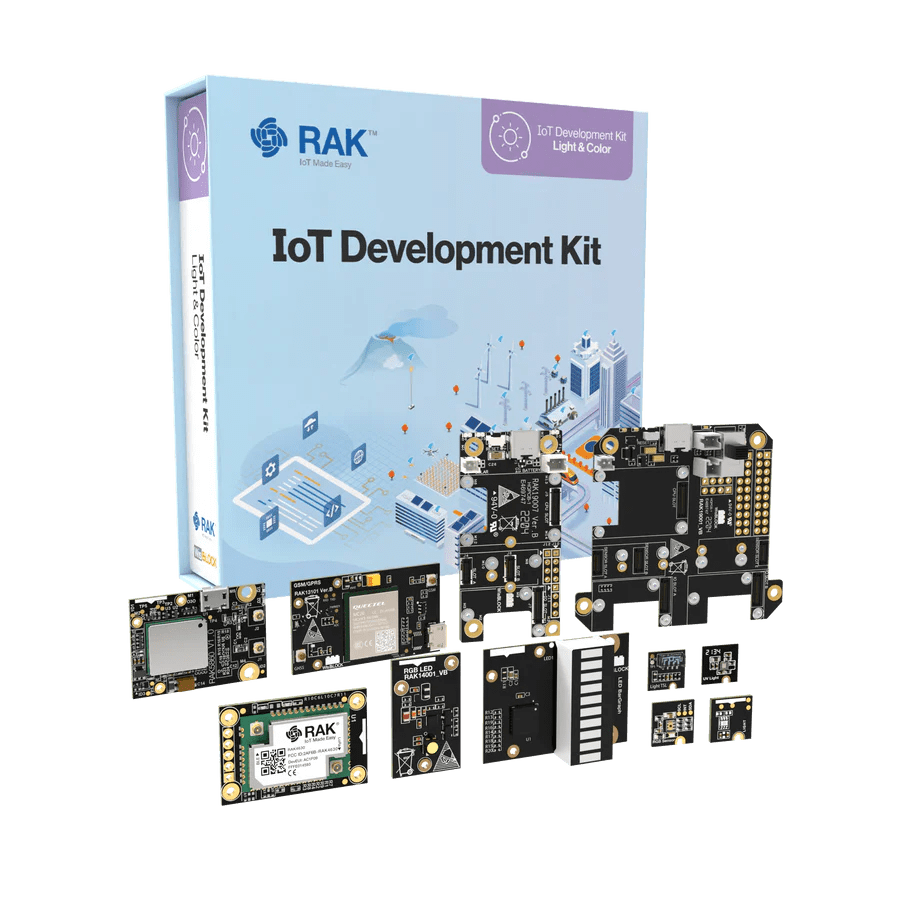

The kit includes:
-
Two WisBlock Core modules RAK4631
-
One WisBlock Base Board RAK19007 with 4 sensor slots and 1 IO slot
-
One WisBlock Base Board RAK19001 Dual IO with 6 sensor slots and 2 IO slots
-
Two RAK12021 RGB light sensors
-
Two RAK12019 UV light sensors
-
Two RAK12010 ambient light sensors (VEML7700)
-
Two RAK1903 ambient light sensors (OPT3001)
-
Two RAK14003 LED bar modules
-
Two RAK14001 RGB LEDs
-
Two RAK5860 cellular modules for NB-IoT and LTE-M
The kit is built for the 8xx MHz band and supports EU868, IN865, and RU864.
Tutorials and example code are available to help get started with light measurement, LED control, and wireless connectivity.
| Specification | Details |
|---|---|
| Kit Type | WisBlock Light and Color Kit – IoT Development Kit |
| Core Modules | 2 × RAK4631 |
| Base Boards | 1 × RAK19007 (4 sensor slots, 1 IO slot) 1 × RAK19001 Dual IO (6 sensor slots, 2 IO slots) |
| Sensor Modules | 2 × RAK12021 RGB Light Sensors 2 × RAK12019 UV Light Sensors 2 × RAK12010 Ambient Light Sensors (VEML7700) 2 × RAK1903 Ambient Light Sensors (OPT3001) |
| LED Modules | 2 × RAK14003 LED Bar 2 × RAK14001 RGB LED |
| Cellular Modules | 2 × RAK5860 (NB-IoT / LTE-M) |
| Supported Bands | EU868, IN865, RU864, AU915, US915, KR920, AS923 |
