Unify Enclosure with Solar Panel IP65 – 100 × 75 × 38 mm
Modular IP65-rated outdoor enclosure with an integrated 80×45 mm solar panel and matching cable for WisBlock solar connectors. Spacious interior, universal mounting options, and brass inserts for durable installations.
incl. VAT35,64 €excl. VAT29,95 €plusShipping Costs
5 in stock
Product Description
Technical Details

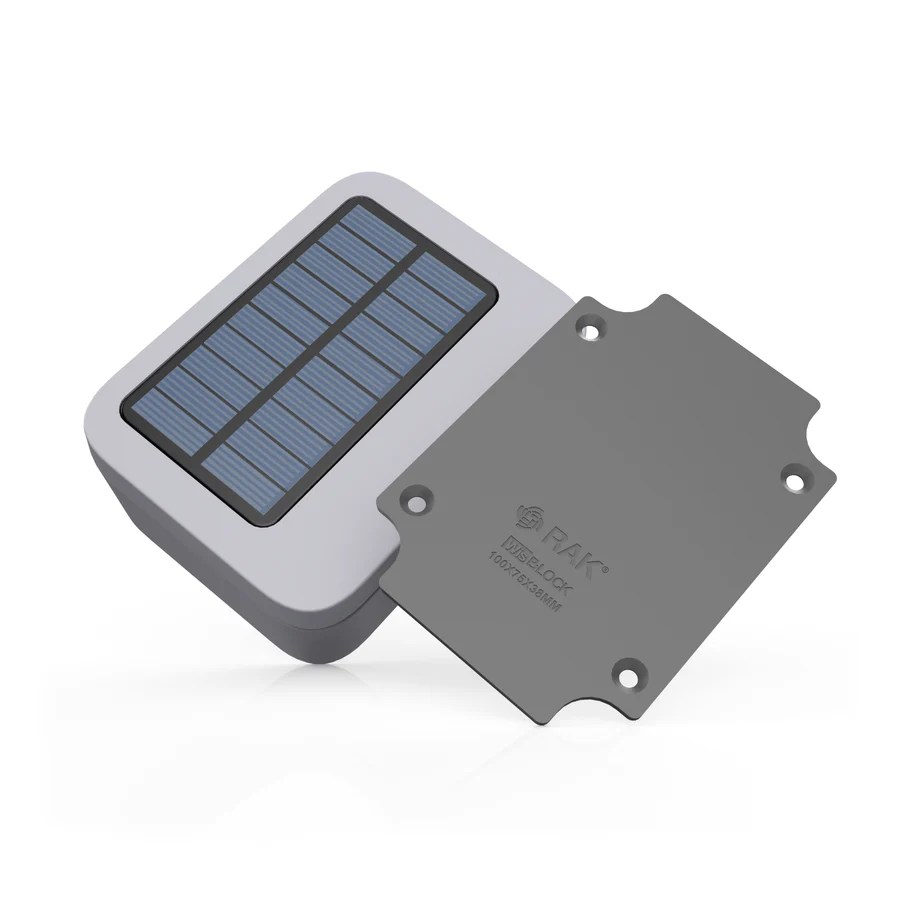

The Unify Enclosure with Solar Panel (100 × 75 × 38 mm) is built for long-life outdoor IoT deployments where protection and easy installation matter. It provides an IP65-rated enclosure with generous internal space and well-thought-out mounting points for clean, repeatable builds. The lid includes an integrated 80 × 45 mm solar panel plus a matching cable, allowing compatible setups to recharge a battery and reduce dependence on external power—depending on your device’s power budget.
Inside, you get approximately 86 × 61 × 29 mm of usable space (varies due to internal features). The enclosure supports WisBlock base boards such as RAK19003 and RAK19007, and it also offers room for a low-profile LiPo battery under the internal mounting plate (about 55 × 34 × 6 mm, excluding narrow areas).
For deployment flexibility, the rear side is designed to accept swappable mounting accessories (wall, vertical pole, DIN rail, magnet, and more). Brass threaded inserts improve durability and allow repeated servicing without stripping threads, while the silicone seal helps maintain reliable weather protection.
| Product | Unify Enclosure with Solar Panel |
|---|---|
| Use | Outdoor / weather-protected installations |
| Ingress protection | IP65 |
| Material | ABS (UL94V-0) |
| External size (incl. lid) | 100 × 75 × 38 mm |
| Internal space (approx.) | 86 × 61 × 29 mm (usable; varies with internal features) |
| Wall thickness | 4.5 mm |
| Sealing | Silicone waterproof seal (square profile) |
| Threading | Brass threaded inserts (blind type) |
| Supported WisBlock base boards | RAK19003, RAK19007 |
| Battery space under plate (approx.) | 55 × 34 × 6 mm |
| Solar panel (integrated) | 80 × 45 × 1.7 mm |
| Solar open-circuit voltage (Voc) | 6.1 V (±10%) |
| Solar short-circuit current (Isc) | 95 mA (±5%) |
| Solar nominal voltage | 5 V (±10%) |
| Solar nominal current | 90 mA (±5%) |
| Cell efficiency | 18% |
| Solar temperature range | -20 °C to +65 °C |
| Solar humidity range | 45–85% RH |
| Mounting plate | 2 mm (bespoke/blank), 1.2 mm (integrated antenna plate) |
| Mounting options | Supports swappable mounting kits (wall, vertical pole, DIN rail, magnet, etc.) |
| Package contents | 1× enclosure with solar, 1× mounting plate (as selected), 1× screw set |
