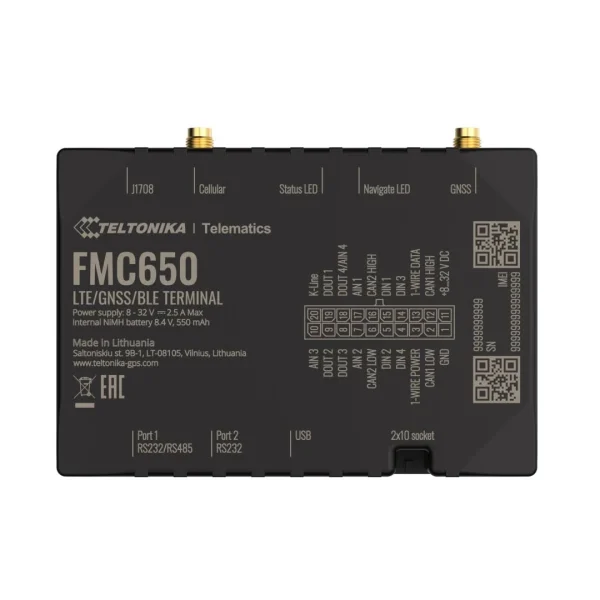

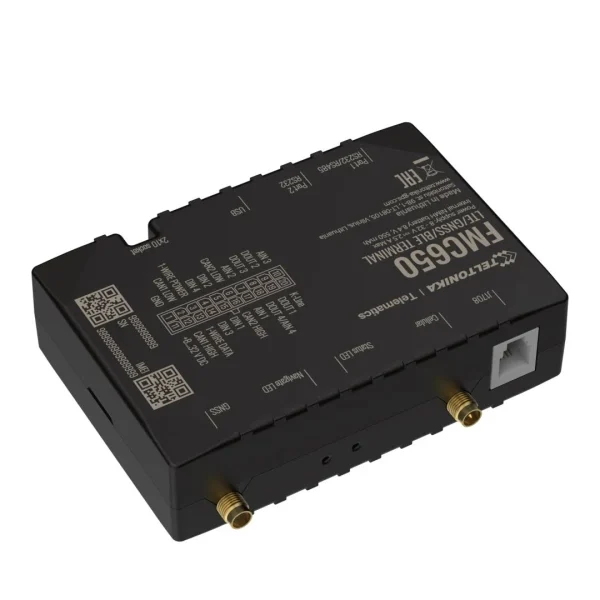

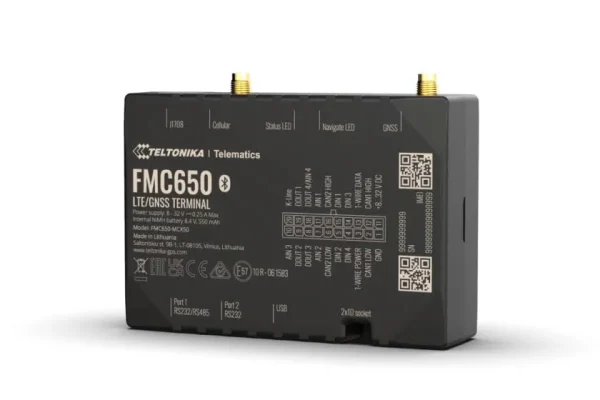

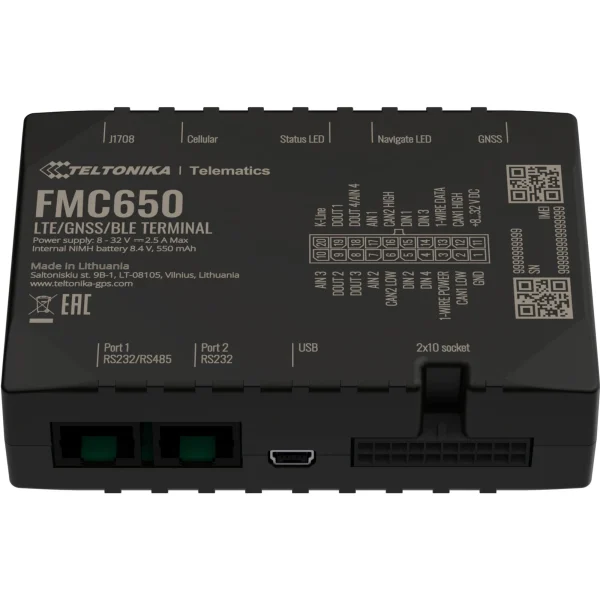

Teltonika FMC650 LTE Professional Tracker with 4g, CAN-Bus and GPS

The Teltonika FMC650 is a 4G LTE Cat 1 tracker for advanced heavy-fleet applications, built for trucks, trailers, and machinery. It combines a high-capacity backup battery, external GNSS/LTE antennas, and rich interfaces (CAN, RS232/RS485, K-line) to enable remote diagnostics, tachograph data workflows, and scalable integration with external devices.

SKU:

incl. VAT138,77 excl. VAT116,61 plusShipping Costs

10 in stock

Product Description Technical Details

The Teltonika FMC650 is designed for fleets that need more than location tracking—especially heavy trucks, trailers, and specialized machinery where operational data, compliance, and uptime matter. With reliable 4G LTE Cat 1 connectivity (2G fallback) and external high-gain antennas for both GNSS and cellular, it delivers stable communication even in challenging environments.

FMC650 stands out with its interface depth. It supports multiple vehicle data channels and industrial peripherals, making it a strong foundation for scalable telematics projects:

Remote DTC reading (DM1/DM2) for proactive maintenance and early failure detection

Truck & trailer oversight by reading FMS / CAN data and combining it with trailer identification and brake-related monitoring (via supported integrations)

Driver working hours workflows and tachograph data management, enabling remote file download and real-time counter activity via K-line, Tacho CAN, or FMS

To support growth over time, FMC650 is built for external device integration at any project stage. Connect sensors, RFID readers, thermographs, and other equipment to add context around cargo condition, driver activity, fuel status, and operational performance—without changing your tracker platform.

Bluetooth® LE (5.2 + LE) further expands use cases with compatible BLE sensors, such as temperature/humidity monitoring for cargo or equipment, while multiple digital/analog I/O lines enable control and event-based automation on-site.

This combination makes FMC650 a strong fit for:

Heavy fleet logistics with truck-trailer pairing requirements

Proactive maintenance programs based on remote diagnostic messages

Compliance-focused operations requiring tachograph/driver activity visibility

Agricultural, marine, and heavy machinery monitoring where component use needs to be measurable and traceable

Configuration and firmware updates are supported via FOTA Web/FOTA and Teltonika Configurator.

Category Specification Value
Overview
Model Product name FMC650
Network Connection 4G LTE Cat 1 with fallback to 2G (GSM/GPRS)
Technology Radio / positioning / short-range LTE Cat 1 / GSM / GPRS / GNSS / Bluetooth® LE
Module
Variant FMC650-MBX50 MeiG SLM320-PE2C with Airoha AG3335MB
Variant FMC650-MCX50 MeiG SLM320-L16B with Airoha AG3335MB
GNSS
GNSS module Module name Airoha AG3335MB
GNSS Supported systems GPS, GLONASS, GALILEO, BEIDOU, QZSS, DGPS
Receiver Channels L1: 75 acquisition/tracking; L5: 60 tracking
Performance Tracking sensitivity -165 dBm
Performance Position accuracy < 2.5 m CEP
Performance Velocity accuracy < 0.1 m/s (within +/- 15% error)
Start Hot / warm / cold 1 s / < 25 s / < 32 s
Cellular
Technology Standards LTE Cat 1, GSM
2G bands FMC650-MBX50 / FMC650-MCX50 B2 / B3 / B5 / B8
4G LTE bands FMC650-MBX50 LTE FDD: B1 / B3 / B7 / B8 / B20 / B28
LTE TDD: B38 / B40 / B41
4G LTE bands FMC650-MCX50 LTE FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B20 / B28
LTE TDD: B40
Data transfer LTE / GPRS LTE FDD: Max 10 Mbps (DL) / Max 5 Mbps (UL)
LTE TDD: Max 8 Mbps (DL) / Max 2 Mbps (UL)
GPRS: Max 85.6 Kbps (DL) / Max 85.6 Kbps (UL)
Data support Messaging SMS (text/data)
Power
Input voltage Range 8–32 V DC with overvoltage (Pulse 5a/5b) and reverse polarity protection
Backup battery Internal 550 mAh Ni-Mh, 8.4 V
Power consumption (max 2 W)
At 12 V Deep / online deep / GPS sleep < 22 mA / < 28 mA / < 51 mA
At 12 V Nominal / max peak < 79 mA / < 96 mA
At 24 V Deep / online deep / GPS sleep < 15 mA / < 18 mA / < 36 mA
At 24 V Nominal / max peak < 41 mA / < 55 mA
Bluetooth®
Module Name Blue NRG232
Specification Version 5.2 + LE
Supported peripherals Examples Temperature & humidity sensor, universal BLE sensors support
Physical specification
Dimensions L × W × H 105 × 78 × 29 mm
Weight Device weight 199 g
Operating environment
Temperature Operating (without battery) -40 °C to +85 °C
Temperature Storage (without battery) -40 °C to +85 °C
Temperature Operating (with battery) -20 °C to +45 °C
Temperature Storage (with battery) -20 °C to +45 °C
Humidity Operating humidity 5% to 95% non-condensing
Ingress protection IP rating IP41
Battery charge temperature Range 0 °C to +40 °C
Battery discharge temperature Range -25 °C to +45 °C
Battery storage temperature Range -20 °C to +45 °C
Interfaces
Digital inputs Count 4
Digital outputs Count 4
Analog inputs Count 4
1-Wire Count 1
RS232 Ports 2
RS485 Ports 1
CAN J1939 Lines 2
CAN J1708 Lines 1
K-line Count 1
GNSS antenna Type External High Gain
Cellular antenna Type External High Gain
USB Port Mini-USB 2.0 (can power device for configuration)
LED indication Status LEDs 2 status LED lights
SIM Type Dual Nano SIM or 1× eSIM
Memory Storage 16 MB internal flash + MicroSD up to 32 GB
Switchable CAN terminals Support Supported on CAN1 and CAN2 lines
Features
Sensors Built-in Accelerometer
Functionalities Main Auto/Manual Geofencing, Trip detection, Odometer, DDD download & Tacho online data, Offline tracking
Scenarios Supported Green/Eco Driving, Over Speeding, Jamming detection, Excessive Idling, Towing detection, Crash detection, Immobilizer, iButton Read Notification
Sleep modes Modes GPS Sleep, Online Deep Sleep, Deep Sleep
Configuration & firmware update Methods FOTA Web, FOTA, Teltonika Configurator
SMS Functions Configuration, Events, DOUT control, Debug
GPRS commands Functions Configuration, DOUT control, Debug
Time synchronization Sources GNSS, NITZ, NTP
Fuel monitoring Methods LLS (Analog), Digital LLS (RS232/RS485), LV-CAN200, CAN FMS, Ultrasonic level sensor
Ignition detection Methods Digital input, Accelerometer, External power voltage
Certifications & approvals
Regulatory Compliance CE-RED, UKCA, E-mark, RCM, Pulse 5a, SIRIM QAS, ICASA, CITC
