Dragino SN50v3-LB Sensor Node LoRaWAN 868mhz
55,00 €excl. 19% VAT
plus Shipping Costs
The Teltonika Eye Sensor is a powerful Bluetooth Low Energy (BLE) sensor for reliable monitoring and tracking of assets. Thanks to its robust construction and long battery life, the sensor is ideal for applications in logistics, agriculture, and industry. Whether for asset tracking, temperature monitoring, or condition control – the Teltonika Eye Sensor offers a flexible, efficient solution for modern businesses.
27,50 €
excl. 19% VAT plus Shipping Costs
35 in stock

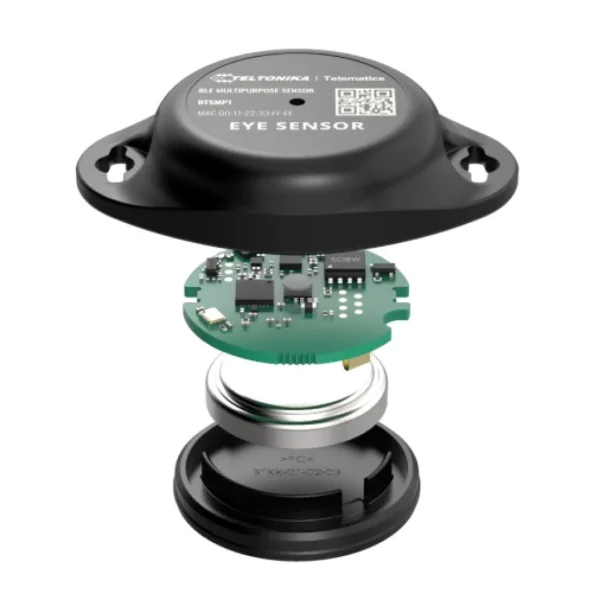

The Teltonika EYE Sensor is a compact Bluetooth® LE beacon built for reliable tracking and condition monitoring in real-world environments. With up to 4 years of battery life by default, an IP67-rated enclosure, and built-in sensors (temperature, humidity, movement, and magnet detection), it’s a practical choice when you need both environmental data and event-based monitoring from a single device.
It’s ideal for monitoring tools and equipment across warehouses, workshops, and job sites—helping you track movement, detect handling events, and keep better control of valuable assets. It’s also a strong fit for cold transport, where temperature tracking is critical for maintaining product quality and compliance during transit. With BLE range up to 80 m (line-of-sight) and transmit power up to 8 dBm, the EYE Sensor supports flexible deployments for logistics, industrial operations, and fleet-related use cases.
Configuration is handled via Teltonika’s EYE APP for fast setup in the field and easy adjustments later. The device supports iBeacon and Eddystone, and can be used with custom sensor configurations depending on your deployment needs.
Note: iBeacon is supported, but the EYE APP on iOS does not display devices using the iBeacon protocol.
| Category | Specification | Value |
|---|---|---|
| Battery | ||
| Model | Battery model | CR2450 |
| Type | Chemistry | Lithium, Manganese Dioxide (Li/MnO2) |
| Capacity | Nominal capacity | 600 mAh |
| Replaceable | User-replaceable | No |
| Battery life | Estimated lifespan | Up to 2.5 years (Tx = 2 dBm; interval 3 s) Up to 4 years (Tx = 2 dBm; interval 5 s), DEFAULT Up to 5 years (Tx = 2 dBm; interval 10 s) |
| Physical specification | ||
| Dimensions | L × W × H | 56.6 × 38.0 × 13.0 mm |
| Weight | Device weight | 18 g |
| Features | ||
| Beacon ID | Supported | Yes |
| Sensors | Built-in | Temperature, Humidity, Movement, Magnet detection |
| Scenarios | Typical use cases | Temperature tracking, Mobile objects tracking, Door status monitoring, Management of heavy-duty vehicles, Goods tracking |
| Sleep mode | Mode | Hibernate |
| Configuration & firmware update | Method | EYE APP |
| Certification & approvals | ||
| Certificates | Compliance | E-Mark (EU), FCC (USA), CE/RED (EU), RoHS (EU), REACH (EU), Anatel, IP rating, SIRIM QAS, SDPPI POSTEL |
| Electronics | ||
| Microcontroller | Chipset | ST Microelectronics BlueNRG-2 |
| Connectivity | ||
| Bluetooth® | Version | Bluetooth® 4.2 |
| Bluetooth operating frequency | Band | 2.402 – 2.480 GHz |
| Bluetooth antenna gain (peak) | Peak gain | 1.2 dBi |
| Range | Line-of-sight | 80 m |
| Transmission power level | Max Tx power | Up to 8 dBm |
| Sensitivity | Receiver sensitivity | -88 dBm |
| Casing & mounting | ||
| Ingress protection | IP rating | IP67 |
| Mounting | Mounting points | Two mounting points on each side |
| Marking | Branding | Custom branding available upon request |
| Environmental requirements | ||
| Humidity (non-condensing) | Operating humidity | 0% to 100% |
| Operational temperature | Operating range | -20 °C to +60 °C (-4 °F to +140 °F) |
| Protocol compatibility | ||
| iBeacon | Supported | Yes* *EYE APP on iOS doesn’t show devices with iBeacon protocol |
| Eddystone | Supported | Yes |
| Sensors (custom) | Supported | Yes |
