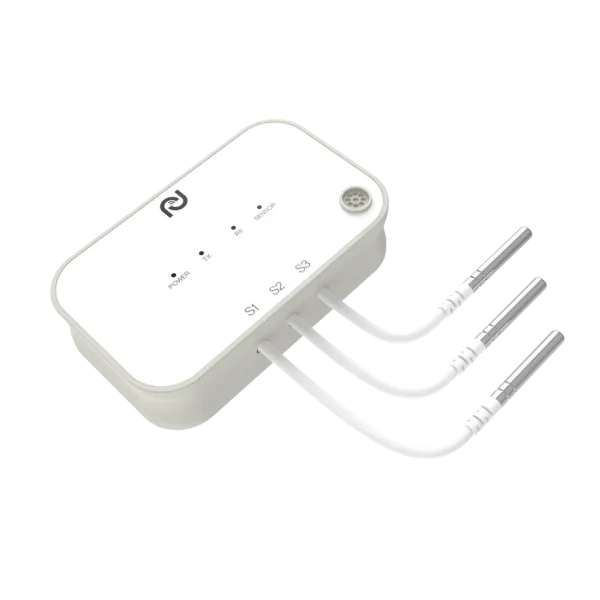

LoRaWAN temperature sensor 3-way DS18B20 – Rejeee Multiple External Temperature Sensor 8xx-9xx mhz

This Rejeee LoRaWAN device measures temperature using three external DS18B20 probes and sends readings wirelessly to a LoRaWAN gateway. Built for flexible multi-point monitoring with waterproof probes and low-power, long-life operation.

SKU: B05023

incl. VAT58,30 excl. VAT48,99 plusShipping Costs

4 in stock

Related items

RAKwireless WisGate Edge Lite 2 Indoor LoRaWAN Gateway RAK7268V2 (EU868)

Indoor LoRaWAN Gateway 8-Channel – RAKwireless WisGate Edge Lite 2 RAK7268V2 (EU868, no LTE)

SKU: 715117 incl. VAT165,41 excl. VAT139,00 plusShipping Costs

4 in stock

LoRaWAN Gateway RAK7268CV2 (EU868/LTE Cat4 EG95-E)

Indoor LoRaWAN Gateway 8-Channel with LTE – RAKwireless WisGate Edge Lite 2 RAK7268CV2 (EU868)

SKU: 715118 incl. VAT256,98 excl. VAT215,95 plusShipping Costs

1 in stock

Grand total: incl. VAT0,00 excl. VAT0,00 plusShipping Costs
Product Description Technical Details

The Rejeee Multiple External Temperature Sensor is a LoRaWAN temperature monitoring device built around three external DS18B20 probes, designed for multi-point measurement in a single deployment—such as multiple zones in cold storage, different areas in a warehouse, or multiple measurement points in a technical room. The waterproof external probes can be placed exactly where temperature matters, while the main unit can be mounted in a more protected spot.

Using LoRaWAN, the device can transmit temperature data over long distances, which is ideal where Wi-Fi coverage or cabling is impractical. It’s engineered for low power consumption and runs on lithium AA batteries (ER145052); the text cites up to 5 years of operation at a 10-minute reporting interval (@SF9). That makes it a strong fit for low-maintenance, long-term monitoring deployments.

Common real-world use cases include temperature monitoring for refrigeration and storage equipment (cold rooms, fridges, storage zones), buildings and technical rooms (computer rooms, equipment areas), and greenhouses where you want to track temperature variation across multiple spots. When paired with backend rules/alerting, it can trigger notifications if temperatures exceed safe limits and provide a usable temperature history for quality and compliance workflows.

Product Rejeee Multiple External Temperature Sensor (MEWTS)
Purpose LoRaWAN temperature monitoring with 3 external DS18B20 probes
Sensors 3× DS18B20 (external)
Wireless LoRa (spread spectrum), LoRaWAN
Transmit power Up to 22 dBm
Receiver sensitivity -140 dBm (BW 125 kHz, SF12)
Data rate 300 bps to 62.5 kbps
CPU Cortex-M low-power processor
Power supply Lithium AA batteries (ER145052)
Peak current 120 mA
Standby current 12 µA
Battery life (stated) Up to 5 years (10-minute reporting @SF9)
Measurement range -40 to +125 °C
Operating range -40 to +85 °C; ≤ 95 %RH
Operating frequency 433–510 MHz (low), 863–928 MHz (high)
Dimensions 103 × 60 × 27 mm (L×W×H)
Controls Left On/Off button; right Data/Test button
Indicators Red: power; green: data transmission
USB USB port for parameter configuration and firmware upgrade (mentioned)
Design Waterproof probe / waterproof design (mentioned)
