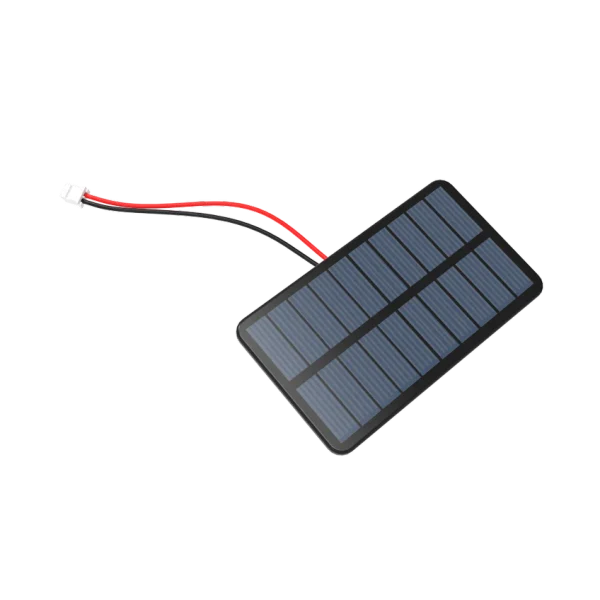

IoT Solar Panel (6V) – RAKwireless 80X45mm
Compact solar panel for charging small batteries and extending runtime in low-power IoT builds. The 80×45 mm form factor fits Unify Enclosures or custom housings and can reduce the need for external recharging in WisBlock/WisDuo deployments. Includes a 10 cm cable with a ZHR-2 (1.5 mm) plug.
incl. VAT4,17 €excl. VAT3,50 €plusShipping Costs
5 in stock
Product Description
Technical Details
This compact solar panel is a practical add-on for IoT products when you want longer battery life and fewer manual recharging cycles. With a 80 × 45 × 2 mm footprint, it’s sized to fit Unify Enclosures or custom housings and provides solar input to top up a battery and extend device uptime. For low-power systems built with WisBlock or WisDuo modules, that can translate into more independence from external power supplies during everyday operation and field trials.
Integration is straightforward: the panel ships with a 10 cm cable and a ZHR-2 (1.5 mm) connector that matches the headers on WisBlock Base Boards and RAK5010 WisTrio modules. For outdoor and semi-outdoor deployments, it’s designed to handle common conditions with UV resistance and an IP65 protection rating.
Typical real-world uses:
Extending battery runtime in ultra-low-power sensors with periodic reporting
Small outdoor enclosures where wired power is impractical
Prototyping and field testing for autonomous IoT nodes
| Solar Panel | |
|---|---|
| Model | HX-80X45 |
| Dimensions (L × W × T) | 80 × 45 × 2 mm |
| Solar cell type | Polycrystalline silicon |
| Processing technique | PET lamination |
| Protection degree | IP65 |
| Connector | ZHR-2 (1.5 mm) |
| Cable length | 10 cm |
| Electrical characteristics | |
| Open circuit voltage (Voc) | 6.1 V (±10%) |
| Short circuit current (Isc) | 95 mA |
| Nominal voltage | 5 V (±10%) |
| Nominal current | 90 mA (±5%) |
| Cell efficiency | 18% |
| Standard test conditions | 38000 LUX : 1000 W/m² : 25°C |
| Environment | |
| Temperature | -20°C to 65°C |
| Humidity | 45% to 85% |
| UV | UV resistant |
| Lifetime | 5 years |
| Compatibility (from provided text) | |
| Works with | WisBlock Base Boards, WisTrio RAK5010; suitable for low-power WisBlock/WisDuo builds |
