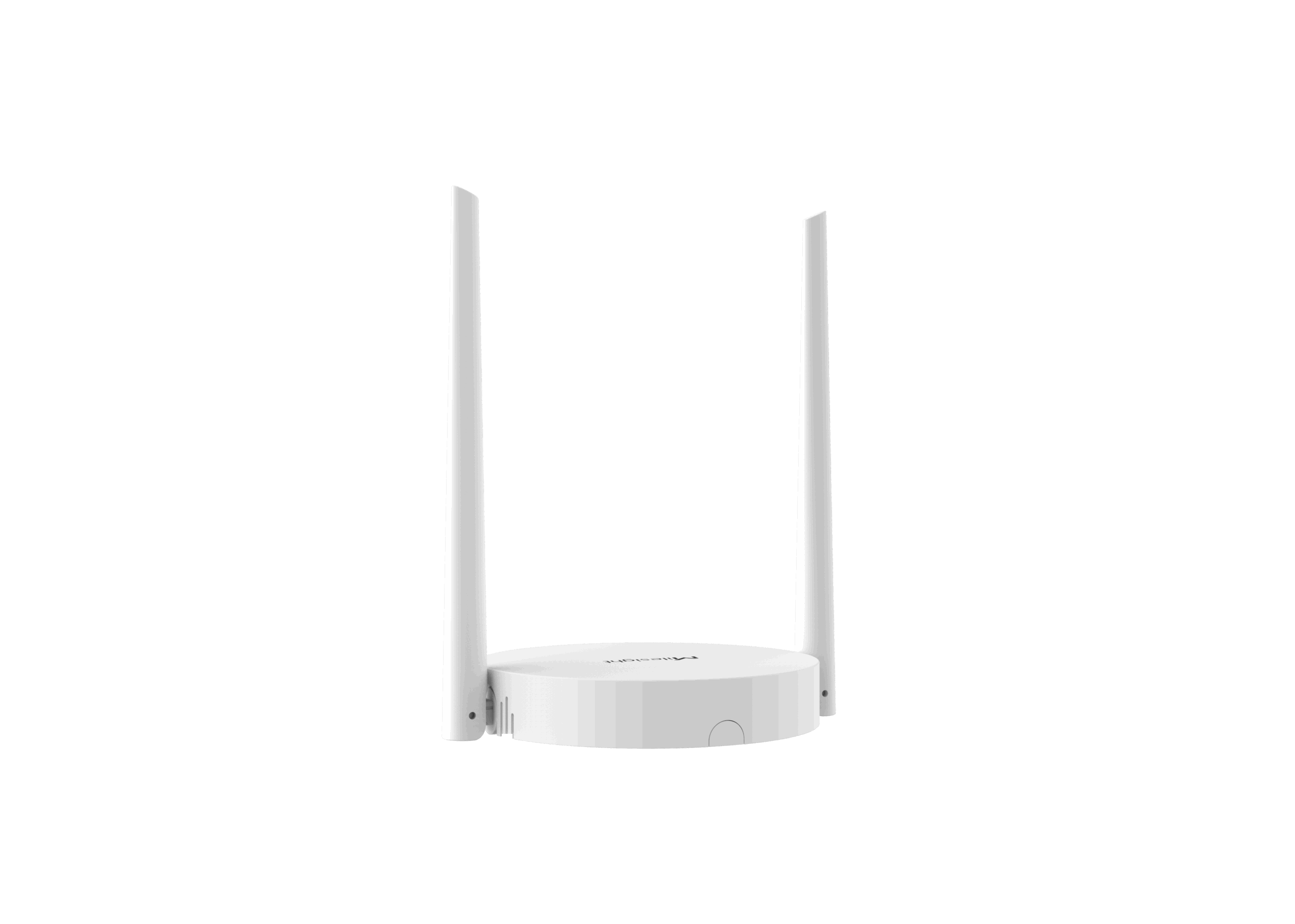

Milesight UG63-868M – Compact 8-Channel LoRaWAN® Gateway with 4G
Lightweight, cost-effective indoor LoRaWAN® gateway with 8 channels, 4G and Ethernet backhaul, wide server compatibility, and remote management – ideal for small to medium-scale IoT deployments.
165,00 €
excl. 19% VAT plus Shipping Costs
5 in stock
Technical Details
| General Information | |
|---|---|
| Model | Milesight UG63-868M |
| Type | 8-Channel Indoor LoRaWAN® Gateway |
| Use Case | Small-scale deployments or signal blind-spot coverage |
| Protection Rating | IP30 |
| Hardware System | |
| CPU | Dual-core 240 MHz, 32-bit Xtensa® LX7 |
| Memory | 8 MB PSRAM |
| Flash | 16 MB |
| LoRaWAN® Interface | |
| Antenna | 1 × External Antenna |
| Channels | 8 (Half-duplex) |
| Frequency Bands | CN470, IN865, EU868, RU864, US915, AU915, KR920, AS923-1/2/3/4 |
| Sensitivity | -140 dBm @ 292 bps |
| Transmit Power | Max. 27 dBm |
| Supported Devices | Up to ~2000 (Class A/B/C) |
| Protocol | LoRaWAN® v1.0.3 (Class A & C) |
| Advanced Features | Packet Filter, Data Retransmission, MQTT Integration |
| Cellular Interface (Optional) | |
| Network | 4G LTE (CAT 1) / GSM |
| Antenna | 1 × External Antenna |
| SIM Slot | 1 × Micro SIM (3FF) |
| Cellular Bands | L08GL (Global except NA): LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66 LTE-TDD: B34/38/39/40/41 GSM: B2/3/5/8 L09NA (North America): LTE-FDD: B2/4/5/12/13/66 |
| Ethernet Interface | |
| Port | 1 × RJ45 WAN |
| Physical Layer | 10/100 Base-T (IEEE 802.3) |
| Data Rate | 10/100 Mbps (Auto-sensing) |
| Ethernet Isolation | 1.5 kV RMS |
| Wi-Fi | |
| Standards | IEEE 802.11b/g/n (2.4 GHz) |
| Mode | AP Mode (for device configuration only) |
| Security | WPA-PSK |
| Power Supply & Consumption | |
| Power Input Options | 1. 5V/2A via Type-C Port 2. 5–12V DC via Power Cable 3. 802.3af PoE via Splitter |
| Power Consumption | Typical: 1.3 W, Max: 3.1 W |
| Other Features | |
| LED Indicators | 1 × SYSTEM, 1 × LTE |
| Buttons | 1 × Reset Button |
| USB Port | 1 × USB 2.0 Type-C (Power + Console) |
| Built-in Protections | Watchdog, Timer |
| Network & Management | |
| Network Protocols | HTTP, HTTPS, MQTT |
| VPN | OpenVPN Client |
| Reliability | Link Backup |
| Configuration | Web UI, MQTT API, Milesight Development Platform, DeviceHub |
| Updates | Web, DeviceHub, Development Platform |
| Diagnostics | Ping Tool |
| Physical Characteristics | |
| Housing & Color | PC + ABS, White |
| Ingress Protection | IP30 |
| Weight | 140 g (non-cellular), 158.2 g (cellular) |
| Dimensions | Ø 115 × 21 mm (Ø 4.52 × 0.83 in) – antenna excluded |
| Mounting Options | Desktop, Wall, Ceiling |
| Environmental Conditions | |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 0% to 95% (non-condensing at 25°C) |
| Certifications | |
| Regulatory | CE, FCC |
| Environmental | RoHS |
