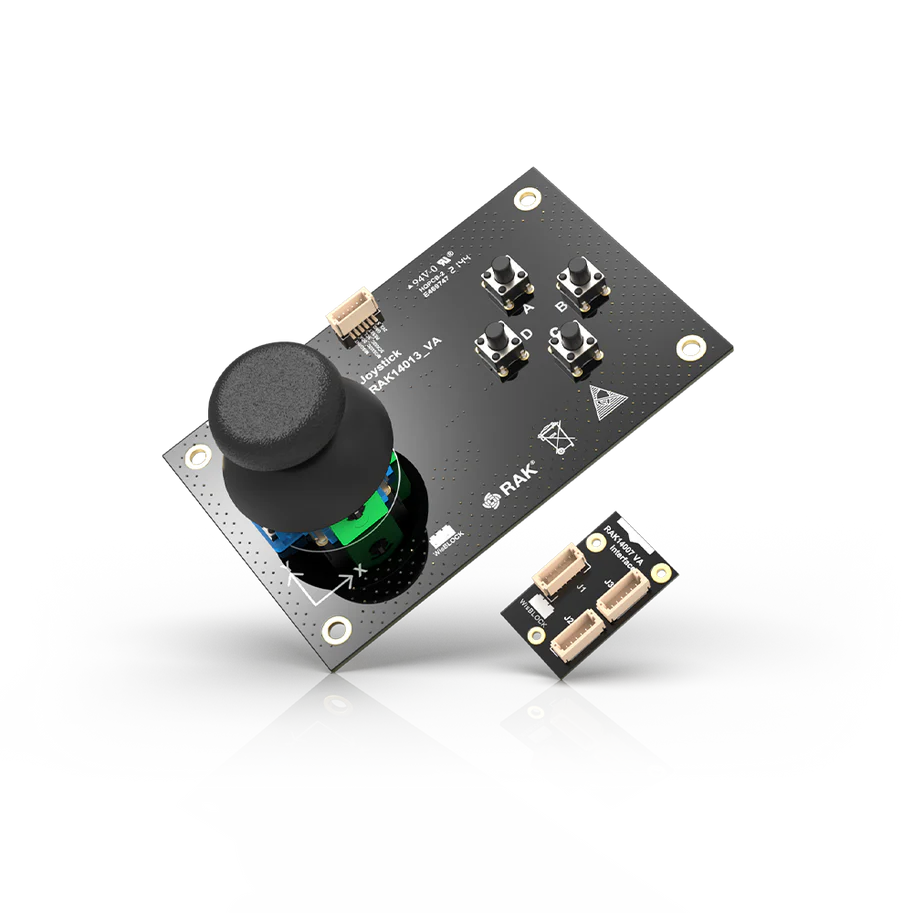

RAK14007 + RAK14013 WisBlock Joystick Module – 2-Axis Joystick & 4 Buttons (I2C, 3.3V)
A practical WisBlock HMI add-on: 2-axis analog joystick + 4 push buttons, read by an onboard MCU and sent as I2C data. Includes RAK14007 adapter board and RAK14013 joystick board.
incl. VAT9,52 €excl. VAT8,00 €plusShipping Costs
10 in stock
Product Description
Technical Details
This kit is a simple way to give your WisBlock project a real hands-on control interface. The RAK14013 combines a familiar 2-axis joystick with four tactile buttons, making it easy to navigate menus, switch modes, or manually control equipment. An onboard microcontroller reads the joystick voltages and button states, then converts everything into clean digital I2C data for your WisBlock Core.
Because the RAK14013 doesn’t use a standard WisBlock connector, the RAK14007 adapter board is included to connect it to your WisBlock Base via cable. That also makes mechanical design easier: mount the joystick on a front panel or external plate, while your main WisBlock stack stays safely inside an enclosure.
Common use cases:
Small industrial / equipment controls (mode selection, manual overrides)
UI navigation for prototypes (with displays or status menus)
Robotics and remote-control style inputs
Field/service tools where you want quick input without a laptop
| Product type | WisBlock joystick + buttons kit (interface + joystick module) |
|---|---|
| Models | RAK14007 (interface) + RAK14013 (joystick) |
| Controls | 2-axis analog joystick + 4 push buttons |
| Interface | I2C |
| Power supply | 3.3 V |
| MCU (RAK14013) | Atmel ATTINY441-SSU |
| RAK14007 size | 15 × 25 mm |
| RAK14013 size | 54 × 85 mm |
| Note | RAK14013 requires RAK14007 (no standard WisBlock connector) |
| Package includes | 1× RAK14007, 1× RAK14013, 1× flat cable, 1× rubber joystick cap |
