LoRaWAN Indoor Temperature & Humidity Sensor EU868 – Dragino LHT52

The Dragino LHT52 is a LoRaWAN indoor sensor for temperature and humidity monitoring with built-in sensing and an optional connection for an external temperature probe. This EU868 version fits offices, storage rooms, utility spaces, retail areas, and building automation where readings need to be sent wirelessly to an IoT server such as Kilo or other compatible platforms.

SKU:

incl. VAT28,44 excl. VAT23,90 plusShipping Costs

Out of stock

Related items

RAKwireless WisGate Edge Pro Outdoor LoRaWAN Gateway RAK7289CV2 (16 Channel) LTE

RAKwireless WisGate Edge Pro Outdoor LoRaWAN Gateway Rak7289cv2 (8 Channel) LTE

SKU: 715123 incl. VAT477,19 excl. VAT401,00 plusShipping Costs

3 in stock

lps8 v2 dragino front tilted

Dragino LPS8N 4G Indoor LoRaWAN Gateway (EU868, SX1302)

incl. VAT211,82 excl. VAT178,00 plusShipping Costs

3 in stock

lps8 v2 dragino front

Dragino LPS8v2 with 4G LoRaWAN Gateway (EU868)

incl. VAT224,79 excl. VAT188,90 plusShipping Costs

3 in stock

Grand total: incl. VAT0,00 excl. VAT0,00 plusShipping Costs
Product Description Technical Details

The Dragino LHT52 is built for wireless indoor monitoring of temperature and humidity. It measures both values with its built-in sensor and sends them over LoRaWAN on EU868. That makes it a practical fit for measurement points where room conditions, storage environments, or temperature thresholds need to be tracked over time without extra wiring.

Typical installation points include offices, meeting rooms, storage areas, utility rooms, retail spaces, service areas, and other building zones where temperature and humidity should be logged consistently. For operators, that matters when conditions need to be documented continuously rather than checked only from time to time, for example in stock rooms, building services, indoor environment monitoring, or general IoT rollouts across existing buildings.

The LHT52 is an indoor sensor for fixed measurement points. Wall mounting keeps installation simple, power from two AAA batteries keeps maintenance straightforward, and the datalog feature helps at sites with temporary coverage gaps. Values are recorded for every uplink and can be retrieved later. It also includes a temperature alarm function so threshold breaches can be reported more quickly.

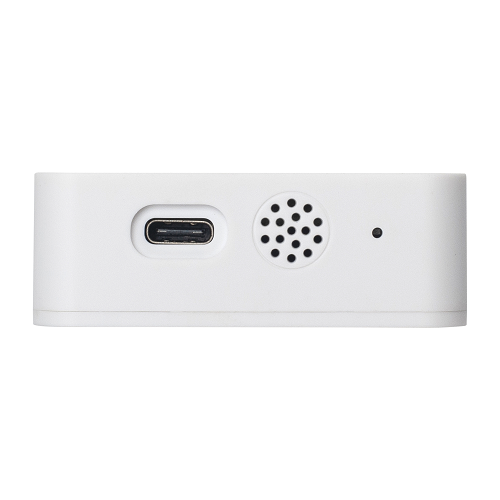

In addition to the built-in temperature and humidity sensor, the LHT52 has a USB Type-C sensor connector for optional external sensors, such as an external temperature probe. That is useful when the actual measurement point is not exactly where the device itself is mounted. For many building and monitoring projects, though, the integrated sensing already covers the job well.

Model Dragino LHT52
Product type LoRaWAN temperature and humidity sensor
Version EU868
LoRaWAN LoRaWAN v1.0.3 Class A
Mounting Wall attachable
Ingress protection IP52
Built-in sensors Temperature and humidity
External sensor connector USB Type-C
Option Connection for an external temperature sensor
Datalog feature Yes
Temperature alarm Yes
Status indication Tri-color LED
Configuration AT commands, remote configuration via LoRaWAN downlink
Firmware upgrade Via program port
Battery 2 x AAA LR03
Package includes LHT52
Package excludes Batteries, external temperature sensor
Dimensions 5.8 x 5.8 x 2.0 cm
Environment Indoor use
Device operating temperature -20 to 50 °C
Temperature resolution 0.01 °C
Temperature accuracy Typical ±0.3 °C
Temperature long-term drift < 0.02 °C/yr
Temperature operating range -20 to 50 °C
Humidity resolution 0.1 %RH
Humidity accuracy Typical ±3 %RH
Humidity long-term drift < 0.25 RH/yr
Humidity operating range 0 to 99.0 %RH, non-condensing
