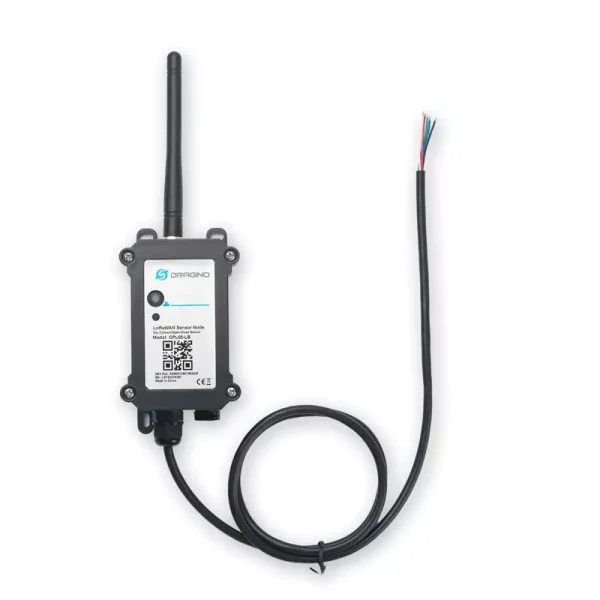

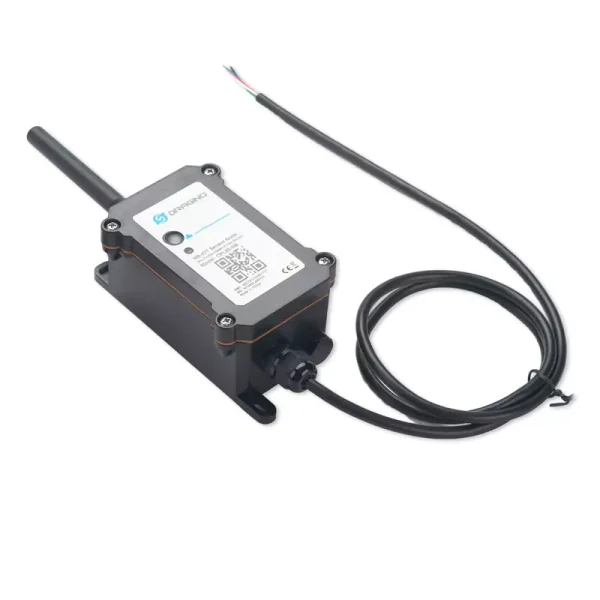

Dragino CPL03-NB NB-IoT Dry Contact Sensor IP67 with Alarm & Datalog

The Dragino CPL03-NB is an NB-IoT contact sensor built for dry contact signals—typical relay outputs or switch contacts used across building automation and industrial control. It doesn’t just report a simple state; it also captures how long the contact stays open/closed and how often events occur, which is useful for maintenance reporting, compliance logs, and process visibility.

In real deployments, you can wire it to many common “contact” sources such as:

Doors and windows (reed switch / relay output)

Gates and barriers

Machine run/fault states via relay output

Pumps, valves, boiler enable contacts

Security and alarm panels (contact monitoring)

For time-critical scenarios, the open alarm feature can trigger an alert if a contact remains open longer than a set threshold. The built-in datalogging helps maintain data integrity: if NB-IoT coverage drops, the device stores events and uploads them once the network is available again—handy in basements, plant rooms, and remote sites.

The CPL03-NB supports multiple uplink options (MQTT/MQTTs, TCP, UDP) so it can fit different backend requirements. On-site setup is simple with Bluetooth (BLE), and firmware can be updated via OTA, reducing maintenance effort. With an IP67 enclosure and wide operating range of -40 to +85 °C, it’s suitable for demanding indoor and outdoor installations.
