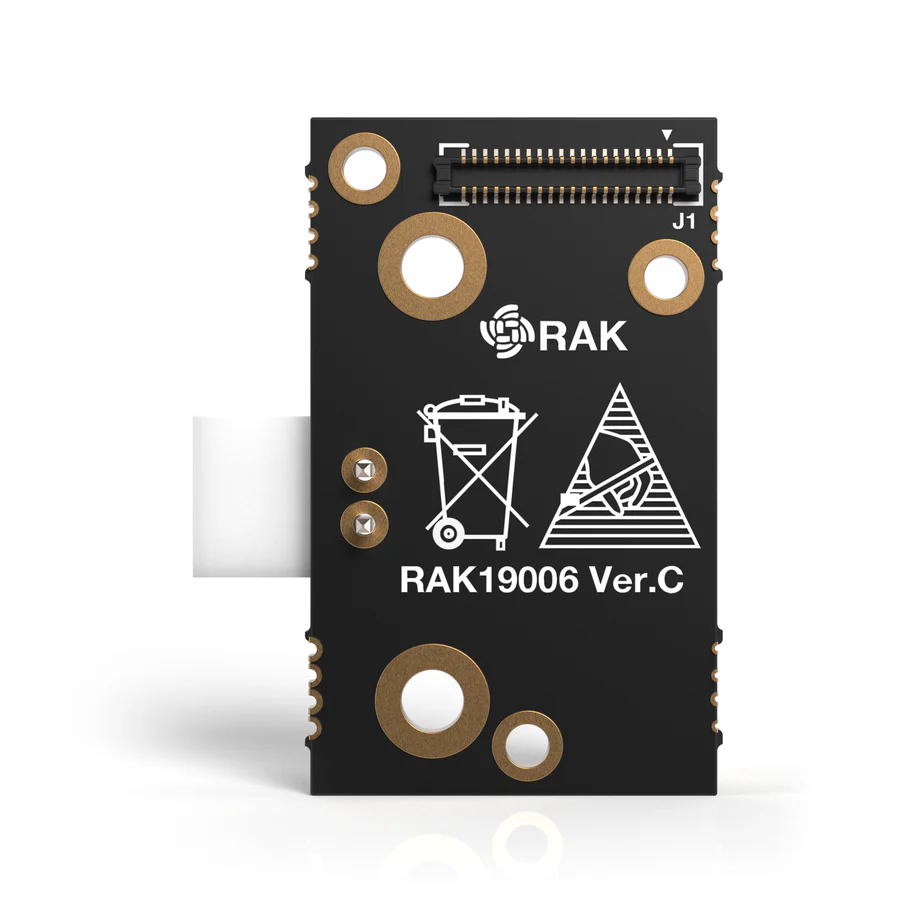

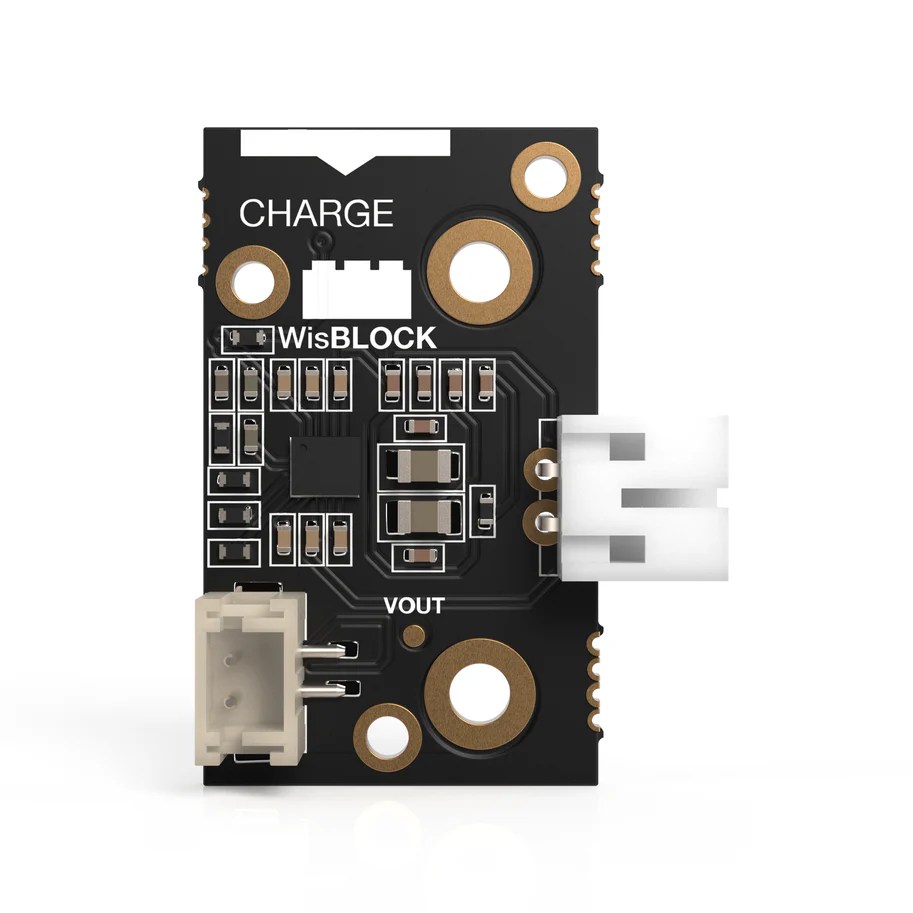

Wireless Charger Module ConvenientPower CPS3008 – RAK19006

The RAK19006 is a small module used to add wireless charging to WisBlock projects. It works as a Qi wireless power receiver and charger in one piece. The module is based on the ConvenientPower CPS3008 chip.

It supports Qi charging and delivers up to 5 W of power. Charging follows JEITA rules and includes built-in protection for over-voltage, over-current, and overheating. Charging stays stable and safe.

The module connects to a WisBlock Base Board, such as the RAK19007, either through the IO slot or via two pogo pin connectors. It supports both wireless charging and wired charging. When no wireless transmitter is present, power leakage stays very low.

With a size of 15 × 25 mm, the RAK19006 fits well into compact IoT projects where space is limited but wireless charging is needed.
