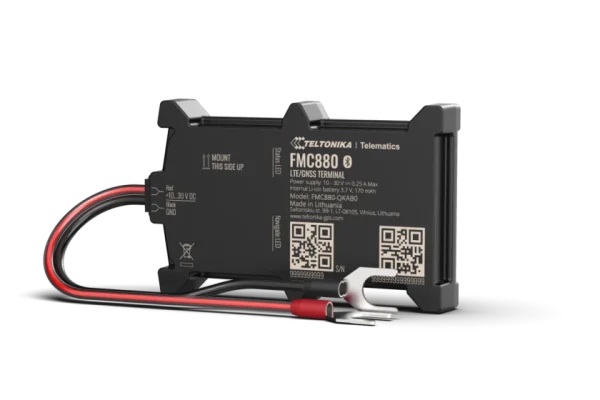

Teltonika FMC880 – Water-resistant 4g LTE Cat 1 car/motorcycle Tracker with High GNSS Precision for Battery Mounting
The Teltonika FMC880 is a water-resistant 4G LTE Cat 1 vehicle GPS tracker with an internal backup battery and dual-band L1/L5 GNSS for higher positioning accuracy. With Bluetooth® LE, it can connect wirelessly to compatible beacons and sensors (e.g., temperature, humidity, magnet detection, movement) for expanded fleet monitoring scenarios. Can also be used for construction equipment.
58,78 €
excl. 19% VAT plus Shipping Costs
23 in stock
Product Description
Technical Details
The Teltonika FMC880 is a compact, water-resistant 4G LTE Cat 1 GPS tracker designed for demanding vehicle and asset tracking deployments where signal quality and reliability matter. It combines robust connectivity (4G with 2G fallback) with an internal backup battery and IP65 protection, making it a strong choice for installations exposed to dust, moisture, or harsh operating conditions.
A key differentiator is its improved positioning performance. FMC880 uses a standalone L1 and L5 dual-band GNSS receiver, which helps deliver better track quality and faster time-to-first-fix—especially useful in challenging environments where multipath interference or weak satellite visibility can affect accuracy.
For extended use cases beyond basic tracking, FMC880 supports Bluetooth® LE. This enables wireless connection to compatible external devices such as low-energy beacons and BLE sensors, allowing you to add condition monitoring (for example temperature and humidity), magnet-based status detection, and movement-based events—without additional wiring complexity.
The device also supports a wide range of operational and safety scenarios (towing, crash, unplug detection, geofencing, idling/overspeeding, etc.) and can be configured and updated via FOTA Web or Teltonika Configurator (USB/Bluetooth®).
| Category | Specification | Value |
|---|---|---|
| Overview | ||
| Model | Product name | FMC880 |
| Network | Connection | 4G LTE Cat 1 with fallback to 2G (GSM) |
| Module | ||
| Variant | FMC880-QJAB0 | Quectel EG915U-EU with AG3335 |
| Variant | FMC880-QKAB0 | Quectel EG915U-LA with AG3335 |
| Technology | Radio / positioning / short-range | LTE Cat 1 / GSM / GPRS / GNSS / Bluetooth® LE |
| GNSS (Dual-band) | ||
| GNSS | Supported systems | L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS* L5: GPS, GALILEO, BEIDOU |
| Receiver | Channels | L1: 75 acquisition/tracking; L5: 60 tracking |
| Performance | Tracking sensitivity | -165 dBm |
| Performance | Position accuracy | < 1.5 m CEP |
| Performance | Velocity accuracy | < 0.1 m/s (within +/- 15% error) |
| Start | Hot / warm / cold | < 1 s / < 25 s / < 35 s |
| Cellular | ||
| 2G bands | GSM | B2 / B3 / B5 / B8 |
| 4G LTE bands | FMC880-QJAB0 | LTE FDD (Cat 1): B1 / B3 / B5 / B7 / B8 / B20 / B28 |
| 4G LTE bands | FMC880-QKAB0 | LTE FDD (Cat 1): B2 / B3 / B4 / B5 / B7 / B8 / B28 / B66 |
| Data transfer | LTE / GPRS | LTE FDD (Cat 1): Max 10 Mbps (DL) / Max 5 Mbps (UL) GPRS: Max 85.6 Kbps (DL) / Max 85.6 Kbps (UL) |
| Transmit power | GSM / LTE / Bluetooth | GSM850/900: Class 5, 30±5 dBm GSM1800/1900: Class 3, 29±5 dBm LTE-FDD: Class 3, 26±5 dBm Bluetooth: 5.54±2 dBm Bluetooth LE: -4.26±2 dBm |
| Data support | Protocols | SMS (TEXT, PDU), TCP, UDP, TLS, MQTT |
| Power | ||
| Input voltage | Range | 10–30 V DC (overvoltage protection) |
| Backup battery | Internal | 170 mAh Li-Ion, 3.7 V |
| Internal fuse | Rating | 3 A, 125 V |
| Bluetooth® | ||
| Specification | Version | 4.0 + LE |
| Supported peripherals | Examples | Temperature & humidity sensor, OBDII dongle, Inateck barcode scanner, universal BLE sensors |
| Physical specification | ||
| Dimensions | L × W × H | 92.5 × 57.6 × 14 mm |
| Weight | Device weight | 63 g |
| Operating environment | ||
| Temperature | Operating (without battery) | -40 °C to +85 °C |
| Temperature | Storage (without battery) | -40 °C to +85 °C |
| Temperature | Operating (with battery) | 0 °C to +40 °C |
| Temperature | Storage (with battery) | -20 °C to +45 °C |
| Humidity | Operating humidity | 5% to 95% non-condensing |
| Ingress protection | IP rating | IP65 |
| Battery | Charge temperature | 0 °C to +45 °C |
| Battery | Discharge temperature | -20 °C to +60 °C |
| Battery | Storage temperature (1 month) | -20 °C to +45 °C |
| Battery | Storage temperature (6 months) | -20 °C to +35 °C |
| Interfaces | ||
| GNSS antenna | Type | Internal High Gain |
| Cellular antenna | Type | Internal High Gain |
| USB | Port | USB 2.0 Micro-B |
| LED indication | Status LEDs | 2 status LED lights |
| SIM | Type | Micro-SIM |
| Memory | Internal storage | 128 MB internal flash |
| Features | ||
| Sensors | Built-in | Accelerometer |
| Scenarios | Supported use cases | Green Driving, Over Speeding, Jamming detection, GNSS Fuel Counter, Excessive Idling, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | Modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration & firmware update | Methods | FOTA Web, Teltonika Configurator (USB, Bluetooth®) |
| SMS | Functions | Configuration, Events, Debug |
| GPRS commands | Functions | Configuration, Debug |
| Time synchronization | Sources | GNSS, NITZ, NTP |
| Ignition detection | Methods | Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| Certifications & approvals | ||
| Regulatory | FMC880-QJAB0 | E-Mark, RoHS, REACH, RCM, Declaration of IMEI assignment, ICASA, CITC, IMDA |
| Regulatory | FMC880-QKAB0 | REACH, RoHS, Declaration of IMEI assignment |
