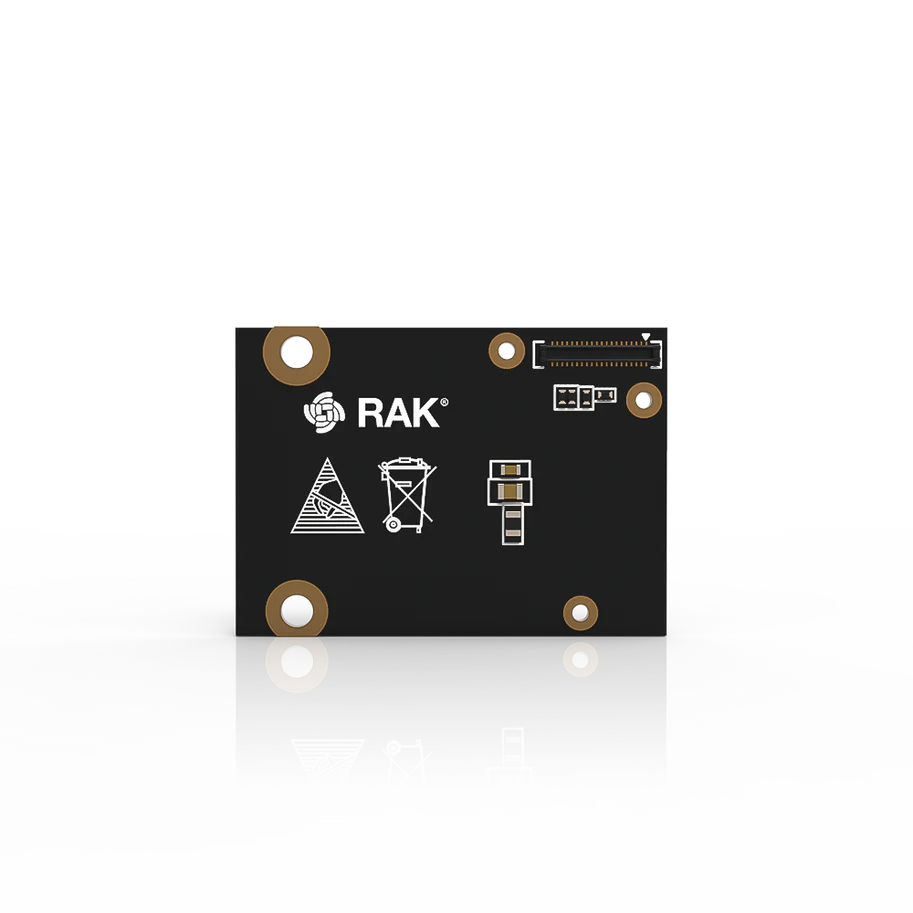

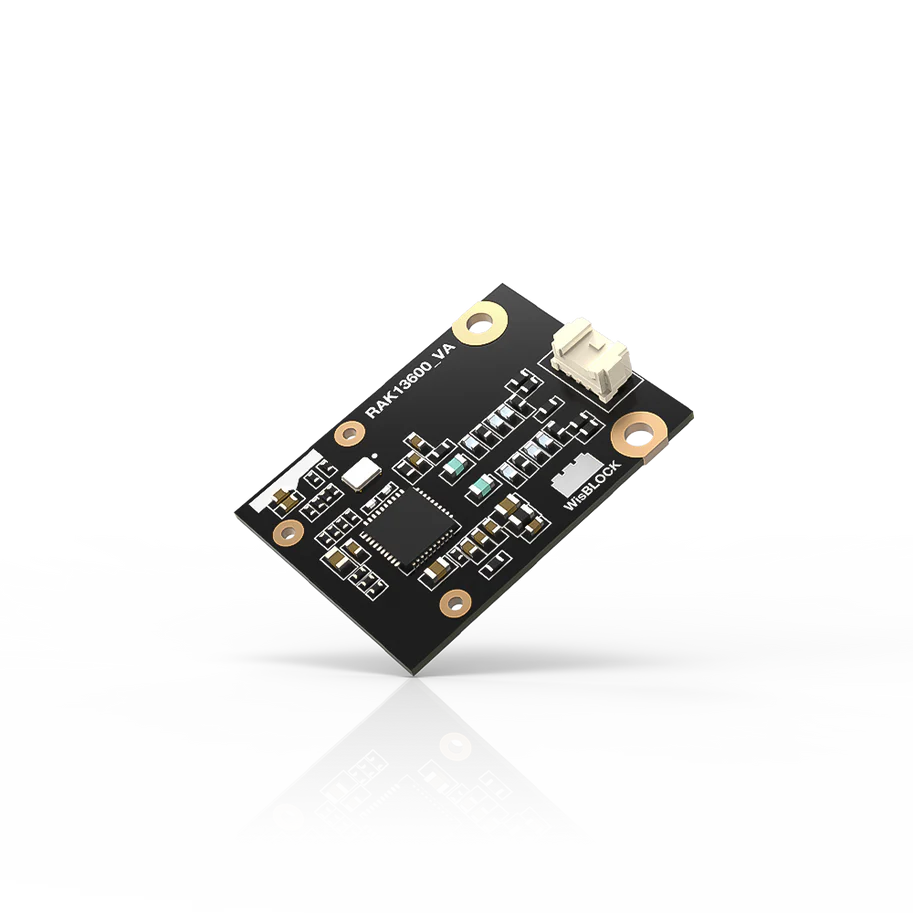

RAK13600 WisBlock NFC, RFID Reader Module (PN532) – 13.56 MHz

Compact WisBlock NFC module based on the NXP PN532 for reading and writing NFC tags and RFID cards. Supports ISO14443A/B, MIFARE, FeliCa and peer-to-peer modes, using an external NFC antenna.

SKU: 110061

27,00 €

excl. 19% VAT plus Shipping Costs

3 in stock

Product Description Technical Details

The RAK13600 WisBlock NFC Reader Module brings 13.56 MHz NFC capability to WisBlock projects in a compact, low-power form. Built around the NXP PN532, it enables reading and writing of NFC tags, RFID cards, and NFC-capable devices such as smartphones—useful for access control, device onboarding, asset identification, maintenance check-ins, and “tap-to-configure” workflows.

It supports multiple operating modes and standards, including ISO/IEC 14443A (MIFARE), ISO/IEC 14443B, FeliCa, and peer-to-peer communication via ISO/IEC 18092 / ECMA-340. The external NFC antenna makes enclosure integration more flexible, especially when antenna placement matters for consistent reads.

To use the module you need a WisBlock Base (slot/power) and a WisBlock Core to run the NFC reader together with the antenna as part of your full application.

Product RAK13600 WisBlock NFC Reader Module
Chipset NXP PN532
Operating frequency 13.56 MHz
Function NFC read/write, card emulation, peer-to-peer
Antenna External NFC antenna
Supported modes / standards ISO/IEC 14443A (MIFARE) Reader/Writer;
FeliCa Reader/Writer;
ISO/IEC 14443B Reader/Writer;
ISO/IEC 14443A/MIFARE card emulation (MIFARE Classic 1K/4K);
FeliCa card emulation;
ISO/IEC 18092 / ECMA-340 peer-to-peer
Power Low power
Dimensions 35 × 25 mm
Mounting WisBlock IO slot (WisBlock Base Boards)
Requirements Requires WisBlock Base + WisBlock Core
