HiLook by HIKVISION 2 MP PT Indoor Wi-Fi Surveillance Camera | 360° Pan Range | IPC-P220-D (4.0mm)

2 MP indoor PT camera with Wi-Fi, 4 mm lens, two-way audio, and microSD storage up to 512 GB. Built for indoor spaces such as entrances, living areas, small offices, reception zones, and back rooms where an adjustable camera view and app access are needed.

SKU:

incl. VAT40,34 excl. VAT33,90 plusShipping Costs

3 in stock

Product Description Technical Details

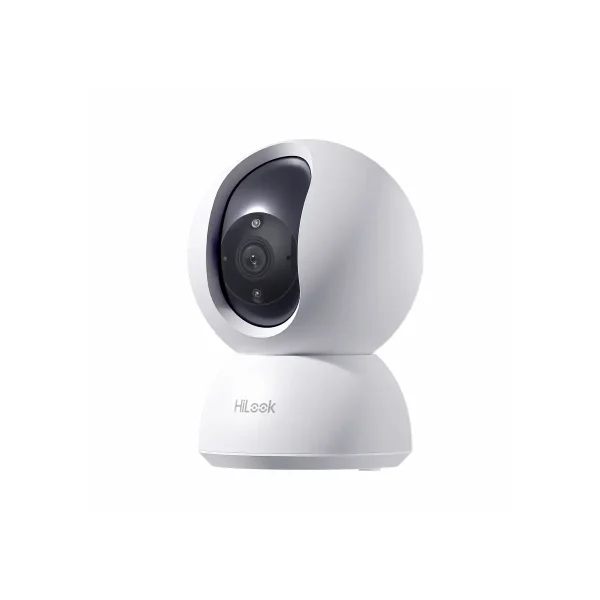

The HiLook IPC-P220-D/W in the 4 mm version is a compact indoor PT network camera for rooms where a fixed camera view is not enough. It is used in living spaces, small offices, reception areas, hallways, checkout zones, back rooms, and internal access points where the viewing direction may need adjustment and Wi-Fi setup is preferred.

The 4 mm lens gives a more focused field of view than a typical wide-angle indoor camera. That suits rooms where the goal is to watch a defined area rather than cover the whole room, such as a doorway, counter, passage, or a specific occupied space. The 2 MP resolution is a practical fit for standard indoor monitoring.

The camera supports Motion Detection 2.0 with human detection. That helps narrow alerts to more relevant movement events. In indoor environments where not every small change should trigger a notification, this is more usable than basic motion detection alone.

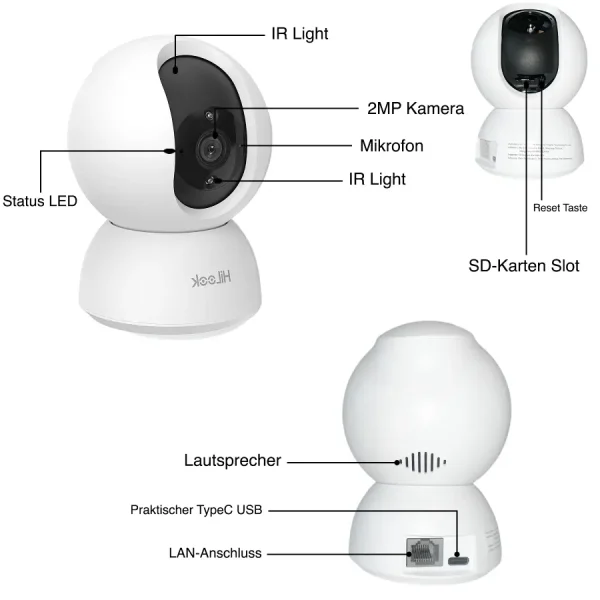

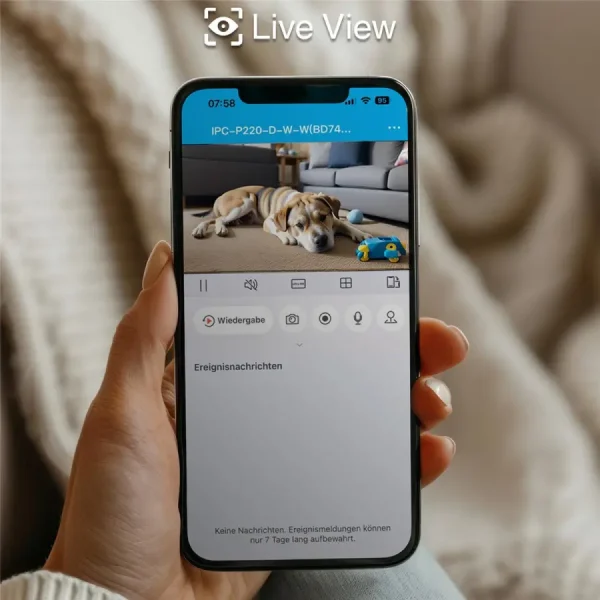

The microphone and speaker are already built in, so the camera also works for simple two-way communication. That is useful at reception desks, indoor visitor areas, or spaces where someone may need to respond remotely. For recording, the camera includes a microSD card slot with support up to 512 GB. Remote access and management are available through the Hik-Connect app.

The camera uses IR night vision up to 10 m and includes Digital WDR and 3D DNR for a cleaner image in more difficult lighting. As an indoor model, it is intended for dry indoor spaces and not for outdoor mounting.

Specification Value
Manufacturer HiLook by Hikvision
Model IPC-P220-D/W(4mm)(W)
Product Type 2 MP Indoor Audio Fixed PT Network Camera
Image Sensor 1/3″ Progressive Scan CMOS
Maximum Resolution 1920 × 1080
Minimum Illumination Color: 0.05 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Pan/Tilt/Rotation Pan: 0° to 330°, Tilt: 0° to 60°, Rotate: 0° to 360°
Focal Length 4 mm
Horizontal FOV 75°
Vertical FOV 45°
Diagonal FOV 85°
Lens Mount M12
Aperture F2.0
Supplement Light Type IR
Supplement Light Range Up to 10 m
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 × 432); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 × 432)
Sub-stream 50 Hz: 25 fps (768 × 432, 512 × 288); 60 Hz: 30 fps (768 × 432, 512 × 288)
Video Compression Main stream: H.265/H.264; Sub-stream: H.265/H.264
Video Bit Rate Up to 1 Mbps
Frame Rate Max. 15 fps, self-adaptive during network transmission
Audio Compression G.711 / AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw), 16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz / 16 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
Simultaneous Live View Up to 4 channels
API ONVIF (Profile S, Profile T, Profile G), SDK
User/Host Administrator
Security Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for ONVIF
Client iVMS-4200, HiLookVision, Hik-Partner-Pro
Wi-Fi Encryption WPA-PSK/WPA2-PSK
Frequency Range 2.412 GHz to 2.472 GHz
Channel Bandwidth 20 MHz
Transfer Rate 11b: up to 54 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps
Wireless Range Up to 50 m (performance depends on actual environment)
Image Settings Saturation, brightness, contrast, sharpness, gain, white balance
Day/Night Switch Auto
WDR Digital WDR
Privacy Mask 4 programmable polygon privacy masks
Ethernet Interface 1 × RJ45 10M/100M self-adaptive Ethernet port
On-board Storage microSD card slot, up to 512 GB
Built-in Microphone Yes, 1 built-in microphone
Built-in Speaker Yes, 1 built-in speaker
Reset Key Yes
Events Motion detection with human target support, exception
Material Plastic
Dimensions Ø80 mm × 122 mm
Package Dimensions 105 mm × 105 mm × 190 mm
Weight Approx. 216 g
Weight with Package Approx. 554 g
Storage Conditions -10 °C to 45 °C, humidity 95% or less, non-condensing
Operating Conditions -10 °C to 45 °C, humidity 95% or less, non-condensing
General Functions Heartbeat, mirror
Power 5 VDC ± 10%, 1 A, max. 5 W
Flashing Light Red and blue light
Approvals CE-RED, CE-EMC, CE-LVD, CE-RoHS, WEEE
