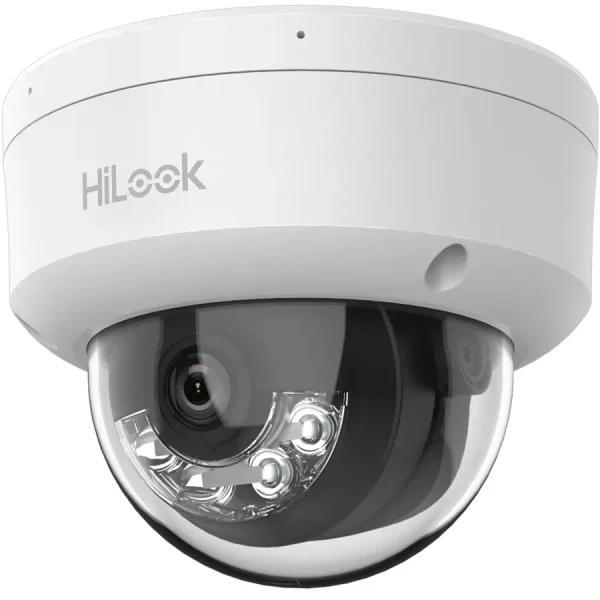

4K PoE dome security camera with microphone and IK08 protection – HiLook IPC-D180HA-LU 2.8 mm
8 MP dome network camera with 2.8 mm fixed lens, Smart Hybrid Light, built-in microphone, and IP67 / IK08 protection. Built for fixed installation at entrances, walkways, building exteriors, corridors, and covered access points where wide coverage and a tougher housing matter.
incl. VAT85,56 €excl. VAT71,90 €plusShipping Costs
3 in stock
The HiLook IPC-D180HA-LU in the 2.8 mm version is a fixed 4K dome network camera for mounting points where the camera remains within reach and needs more physical protection than a standard outdoor housing. It fits entrance areas, stairwells, side access routes, corridor sections, gate zones, and soffit or ceiling positions in commercial and residential buildings.
Its 2.8 mm lens is the wide-angle version of this model. That makes it useful for covering the area directly in front of doors, small yard sections, approach paths, or broader entry zones with one camera. The 8 MP resolution gives more usable detail in recorded footage when reviewing movement, access events, or vehicle activity around the building.
For low-light scenes, the camera combines infrared and white light. In Smart Hybrid Light mode, white light can switch on when motion is detected, allowing color night video instead of basic black-and-white recording. That is a practical choice where recorded scene detail matters, not just event notification.
Motion detection supports human and vehicle filtering. The built-in microphone adds live audio capture for entrances, reception-side access points, and protected outdoor areas. Integration into existing video systems is handled through ONVIF, ISAPI, and SDK support. Network and power can be supplied over a single cable using PoE.
The housing is rated IP67 for dust and water resistance and IK08 for vandal resistance. According to the manufacturer, this model does not include any special anti-corrosion protection, so it is intended for normal outdoor and indoor environments rather than coastal or chemically aggressive sites.
| Specification | Value |
|---|---|
| Manufacturer | HiLook by Hikvision |
| Model | IPC-D180HA-LU(2.8mm) |
| Product Type | 8 MP Smart Hybrid Light MD 2.0 Fixed Dome Network Camera |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Maximum Resolution | 3840 × 2160 |
| Minimum Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan 0° to 355°, tilt 0° to 75°, rotate 0° to 355° |
| Lens Type | Fixed focal lens |
| Focal Length | 2.8 mm |
| Horizontal FOV | 105° |
| Vertical FOV | 55° |
| Diagonal FOV | 127° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F2.0 |
| DORI | D: 76 m, O: 30 m, R: 15 m, I: 7 m |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | Up to 12.5 fps at 50 Hz / up to 15 fps at 60 Hz |
| Sub-Stream | Up to 12.5 fps at 50 Hz / up to 15 fps at 60 Hz |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| ROI | 1 fixed region for main stream |
| SVC | H.264 and H.265 encoding |
| Audio Type | Mono sound |
| Built-in Microphone | Yes |
| Noise Filtering | Environment noise filtering |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Audio Compression | G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1/G.726), 32 to 160 Kbps (MP2L2), 16 to 64 Kbps (AAC-LC) |
| Security | Password protection, watermark, HTTP authentication, WSSE, security audit log, host authentication by MAC address |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF Profile S, Profile T, ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| User/Host | Up to 32 users, 3 levels: administrator, operator, user |
| Client | iVMS-4200, HiLookVision |
| Browser | IE 10/11, Chrome 57+, Firefox 52+, Edge 89+ |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance |
| Privacy Mask | 4 programmable polygon privacy masks |
| Ethernet Interface | 1 × RJ45 10/100 M self-adaptive Ethernet port |
| Events | Motion detection with human and vehicle triggering, video tampering alarm, exception |
| Linkage | Upload to FTP, send email, notify surveillance center, trigger capture |
| Power | 12 VDC ±25%, 0.5 A, max. 6 W |
| PoE | IEEE 802.3af, Class 3, max. 7.5 W |
| Material | Metal & Plastic |
| Dimensions | Ø121.5 mm × 97.6 mm |
| Package Dimensions | 150 mm × 150 mm × 141 mm |
| Weight | Approx. 550 g |
| Weight with Package | Approx. 800 g |
| Storage Conditions | -30 °C to 60 °C, humidity 95% or less, non-condensing |
| Operating Conditions | -30 °C to 60 °C, humidity 95% or less, non-condensing |
| Language | English, Ukrainian |
| General Functions | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Protection Rating | IP67, IK08 |
| Approvals | CE-EMC, RCM, IC, CB, CE-LVD, CE-RoHS, WEEE, Reach |
